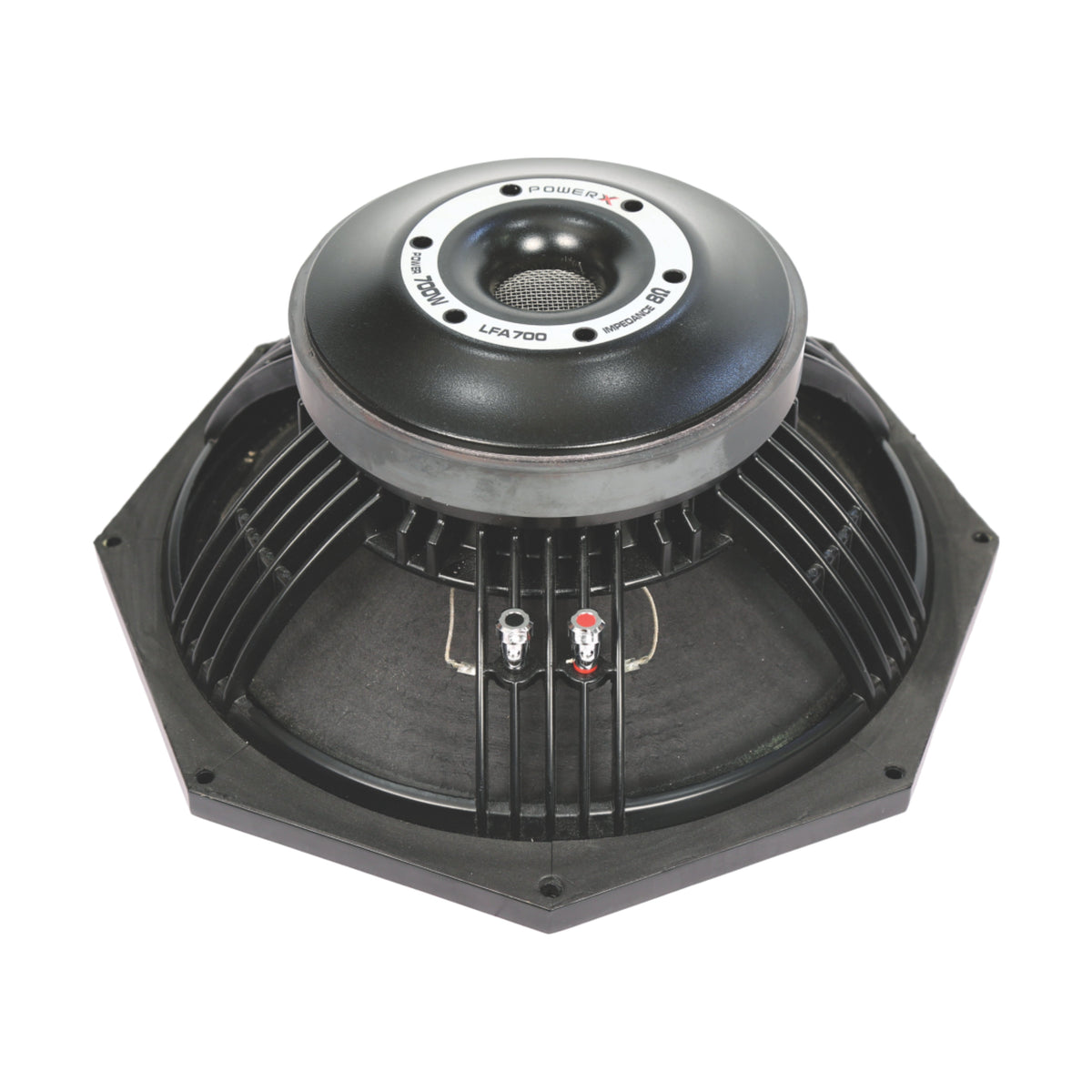

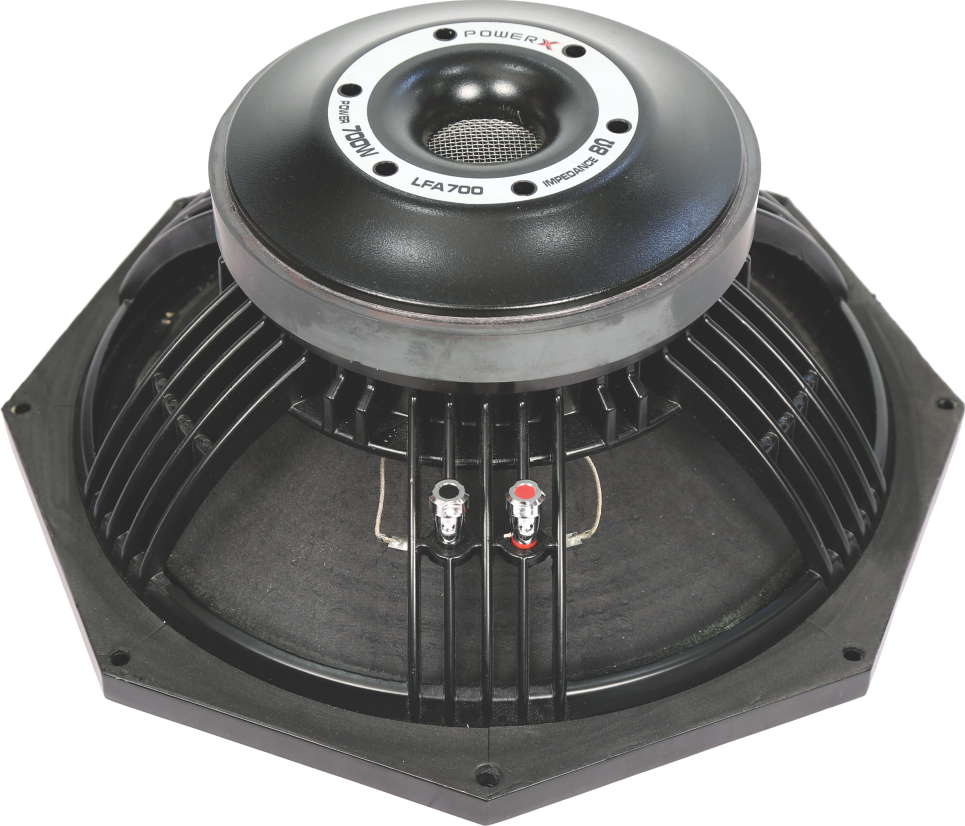

15 LFA 700

Name: 15 LFA 700
Brand: POWERX PRO
Availability: InStock

The 15 LFA 700 is a highly versatile 15-inch transducer engineered for the esteemed PRO SERIES. Representing a premier acoustic building block, this driver is exceptionally suited for 2-way passive full-range builds, stage monitoring, and compact touring setups.

Showcasing robust acoustic output, it handles a continuous 700 AES Watts while accommodating dynamic program peaks up to 1400 Watts. A highly efficient 99 dB (1W/1M) sensitivity ensures the speaker translates power into substantial overall loudness, maintaining crystal-clear dynamic headroom under demanding live conditions.

Its internal acoustics are powered by a substantial 99.5 mm (4-inch) voice coil paired with a dependable Ferrite magnet structure. This advanced driver configuration provides strict mechanical control over the cone, resulting in consistent, phase-accurate sound dispersion across the listening field.

Offering a highly musical frequency response of 45 Hz to 1.5 KHz and a resonant frequency (Fs) of 45 Hz, it delivers exceptional fidelity. The sonic character yields punchy, tight bass alongside transparent lower mids, allowing for seamless crossover efficiency and uncompromising acoustic purity.

Built into a durable frame measuring 393 mm in diameter and 176 mm deep, it is crafted for rigorous venue use. At a manageable weight of 13.5 Kg with an 8 ohms nominal impedance, this transducer is highly road-worthy and ready to be loaded into heavily rigged professional enclosures.

More information

15 LFA 700 — Key Features
700 W AES Power Handling

The 15 LFA 700 delivers 700 W AES continuous power handling and up to 1400 W program power, providing substantial dynamic headroom for demanding live sound and professional sound reinforcement applications.

High-Efficiency 15-Inch Transducer

Designed as a versatile 15-inch professional transducer, the 15 LFA 700 is an ideal building block for 2-way passive full-range systems, stage monitors, compact touring systems, and professional PA enclosures.

99 dB High Sensitivity

With an impressive 99 dB sensitivity (1W/1m), the driver efficiently converts amplifier power into acoustic output, delivering high SPL with excellent efficiency and maintaining clarity during demanding performances.

4-Inch Voice Coil

The 99.5 mm (4-inch) voice coil is designed for reliable power handling and consistent operation, providing the thermal and mechanical performance required for professional applications.

Robust Ferrite Magnet Structure

A dependable Ferrite magnet structure provides the driving force required for controlled cone movement and powerful acoustic reproduction, making the 15 LFA 700 suitable for rigorous professional use.

Punchy Low Frequencies & Transparent Mids

With a frequency response of 45 Hz – 1.5 kHz and a resonant frequency of 45 Hz, the driver delivers tight, punchy bass and clear lower-midrange reproduction, supporting smooth integration with high-frequency compression drivers.

Controlled Mechanical Performance

The driver features carefully engineered Thiele-Small parameters, including a Qts of 0.31, Vas of 90 L, BL of 26 Tm, and 7.4 mm Xmax, providing system designers with a strong foundation for optimized professional cabinet designs.

High-Output Professional Construction

The 393 mm overall diameter, 360 mm baffle cut-out, and 176 mm depth allow the driver to be securely integrated into purpose-built professional loudspeaker enclosures.

Road-Ready Design

Weighing 13.5 kg, the 15 LFA 700 offers a robust construction suited to the demands of touring, rental, stage, and fixed-installation environments while maintaining practical cabinet integration.

Technical specification

Following is the technical specification of 15 LFA 700 :-
15 LFA 700 — Specifications

Nominal Diameter: 15 inches
Power Handling Capacity: 700 W AES
Max Power: 1400 W
Nominal Impedance: 8 Ohms
Sensitivity (1W/1m): 99 dB
Frequency Range: 45 Hz – 1.5 kHz
Voice Coil Diameter: 99.5 mm (4 inches)
Magnet Structure: Ferrite
Thiele-Small Parameters
Fs: 45 Hz
Re: 5 Ohms
Qms: 5.26
Qes: 0.33
Qts: 0.31
Vas: 90 L
Mms: 152 g
Cms: 0.08 mm/N
BL: 26 Tm
Le: 0.97 mH
Xmax: 7.4 mm
η0 (n0): 2.4%
Sd: 881 cm²
Dimensions
Overall Diameter: 393 mm
Bolt Circle Diameter: 406 mm
Baffle Cut-out Diameter: 360 mm
Overall Depth: 176 mm
Net Weight: 13.5 kg
