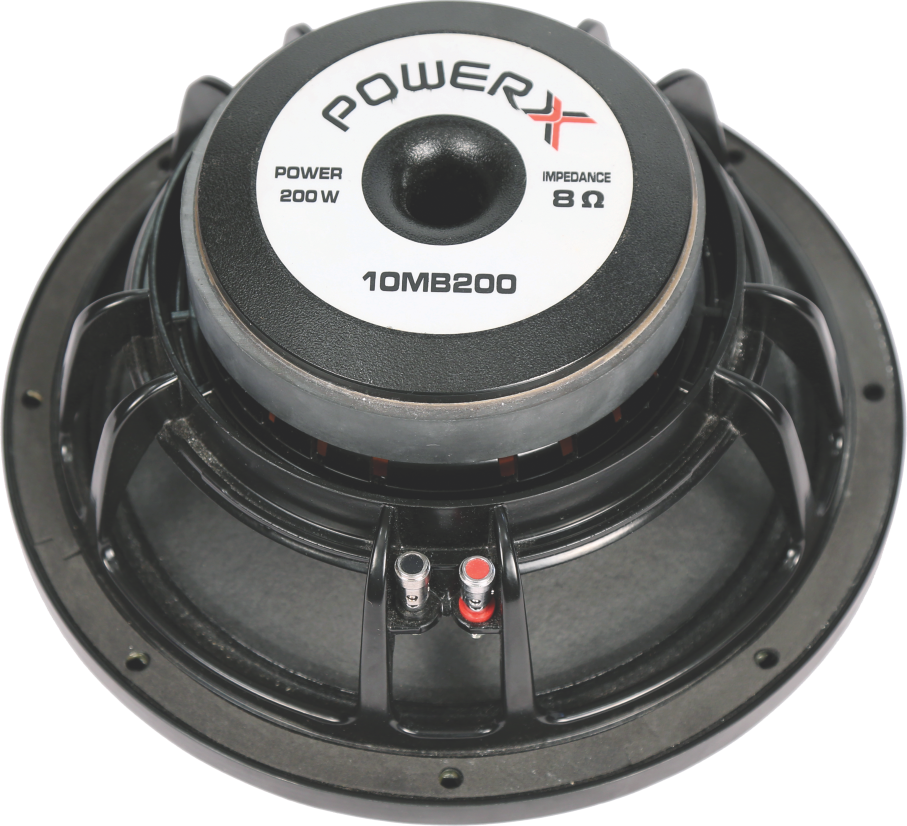

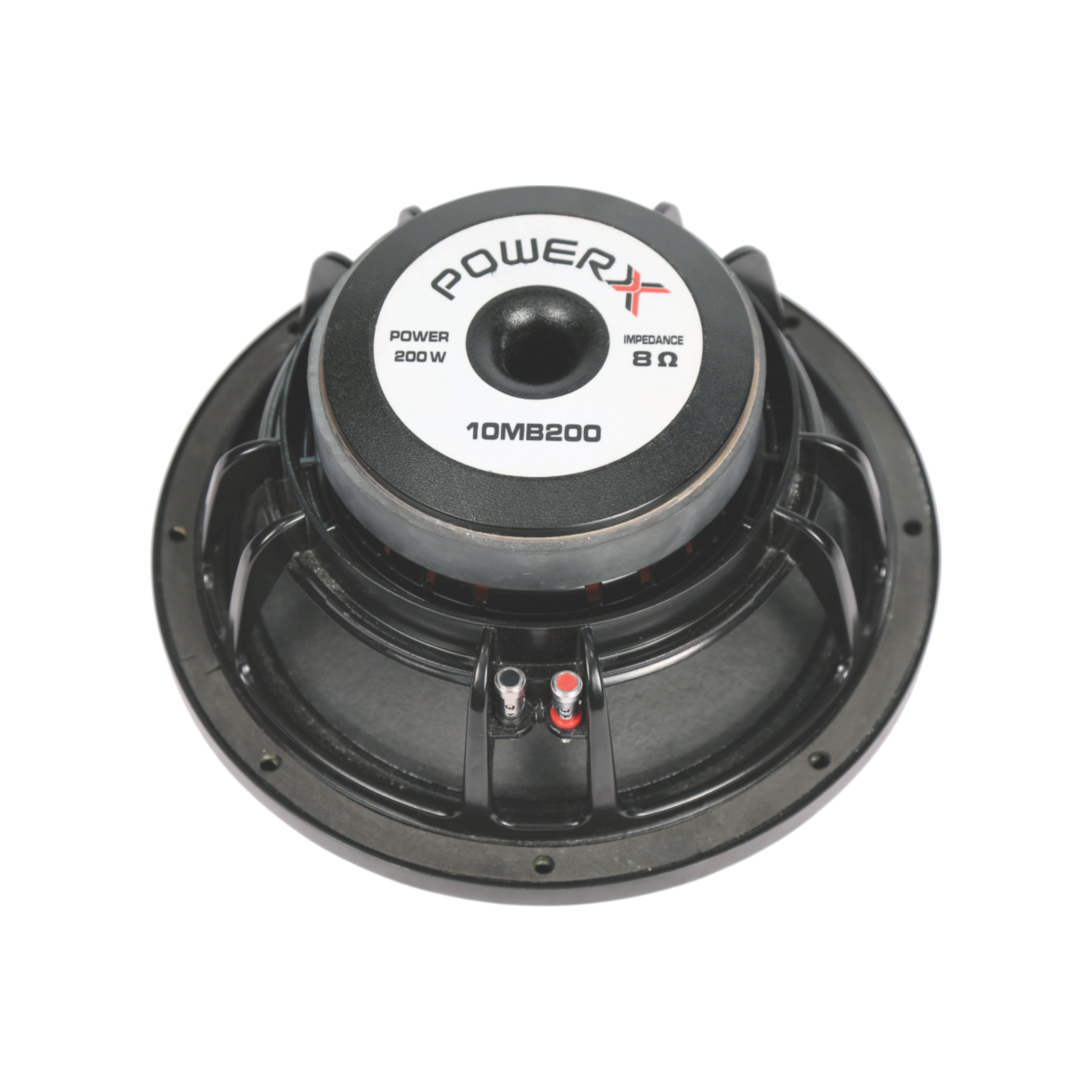

10 MB 200

Name: 10 MB 200
Brand: POWERX PRO
Availability: InStock

The 10 MB 200 is a specialized 10-inch mid-bass driver engineered for the professional PRO SERIES line. Representing a highly efficient acoustic solution, this transducer is excellently tailored for vocal monitors, multi-zone venue installations, and compact 2-way passive enclosures.

It is calibrated for focused acoustic output, handling 200 AES Watts continuously and peaking at 400 Watts of program power. With a sensitivity rating of 96 dB (1W/1M), the speaker provides robust overall loudness and sufficient dynamic headroom to ensure transparent audio reproduction at high operational volumes.

Its internal acoustics rely on a highly responsive 51.5 mm (2-inch) voice coil mated to a dependable Ferrite magnet structure. This proven driver technology affords excellent mechanical stability, ensuring that your mid-frequency dispersion remains consistent, phase-accurate, and beautifully balanced.

Tuned for mid-range fidelity, the frequency response spans from 65 Hz to 2.5 KHz alongside a resonant frequency (Fs) of 68 Hz. The sonic character is defined by warm, tight low-mids and distinctively transparent vocal frequencies, allowing for highly efficient crossover integration.

Constructed with structural resilience, it features an overall diameter of 262 mm and a depth of 115 mm. Weighing a highly manageable 3.5 Kg at a nominal 8 ohms impedance, this reliable, road-worthy driver is ready to be securely mounted into your professional hardware enclosures.

More information

Professional Design: 10-inch professional mid-bass driver engineered for high-performance sound reinforcement and loudspeaker systems.

High Power Handling: Delivers 200 W AES continuous power and 400 W program power for demanding professional audio applications.

High Efficiency: 97 dB (1 W / 1 m) sensitivity ensures high acoustic output with excellent system efficiency.

Wide Mid-Bass Frequency Response: Covers 65 Hz – 2.5 kHz, delivering powerful low-mid frequencies and clear vocal reproduction.

Large 2-Inch Voice Coil: Features a 51.5 mm (2-inch) voice coil for superior thermal management, improved durability, and consistent performance.

Ferrite Magnet Structure: High-performance ferrite magnet provides strong magnetic flux for precise cone control and reliable operation.

Natural Vocal Clarity: Engineered to reproduce warm low-mid frequencies and transparent vocals with low distortion.

Optimized System Integration: Designed for seamless integration with high-frequency compression drivers in 2-way and multi-way professional loudspeaker systems.

Rugged Construction: Durable frame and professional-grade components ensure long-term reliability in demanding touring and installed audio environments.

Professional Applications: Ideal for vocal monitors, compact PA systems, 2-way passive loudspeakers, stage monitors, auditoriums, houses of worship, rental systems, commercial installations, and touring sound applications.

Technical specification

Following is the technical specification of 10 MB 200 :-
200 AES Watt / 400 Program Power
51.5 mm (2 inch voice coil)
97 dB 1w @1m sensitivity
65 Hz to 2.5 KHz Frequency response
Ferrite Magnet Structure
