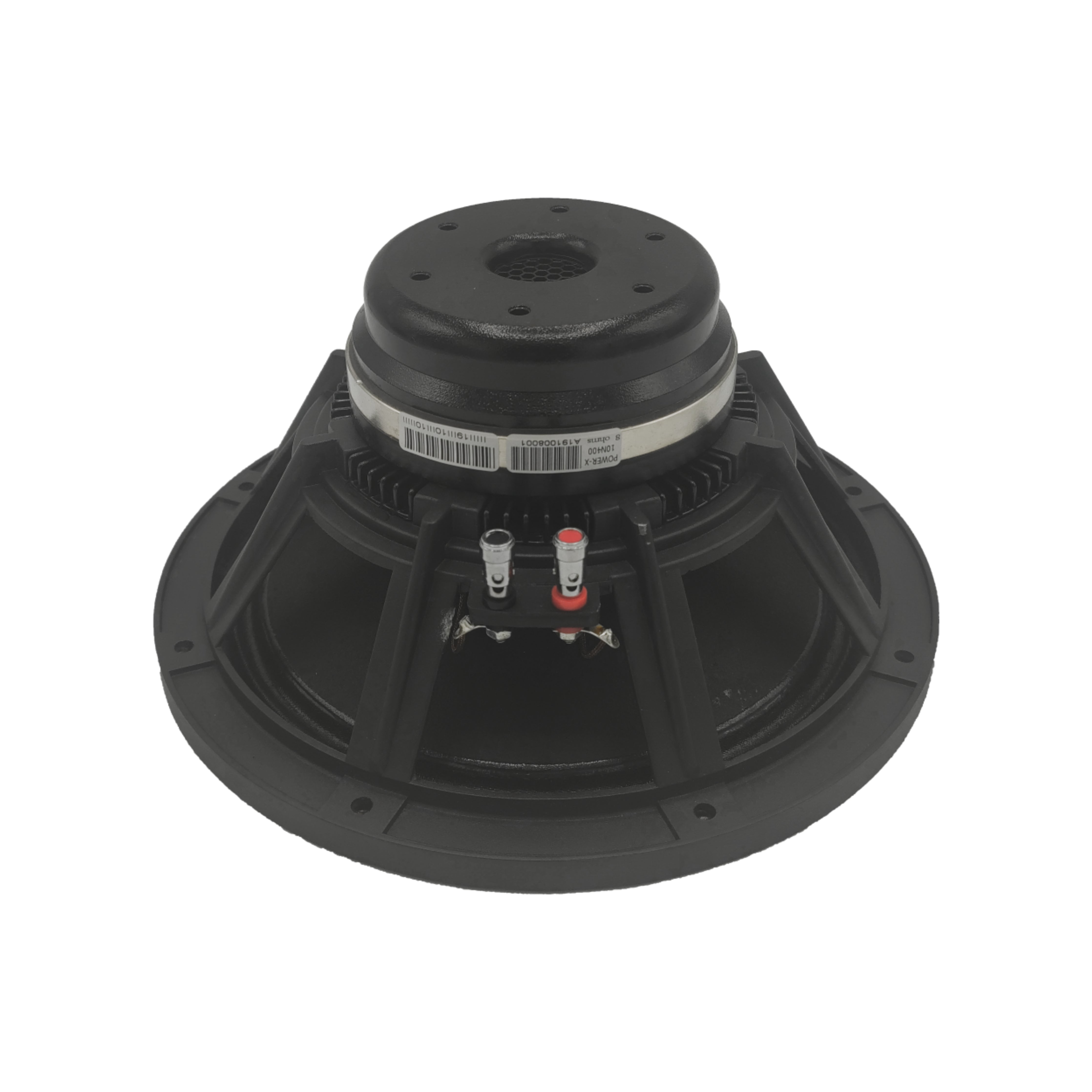

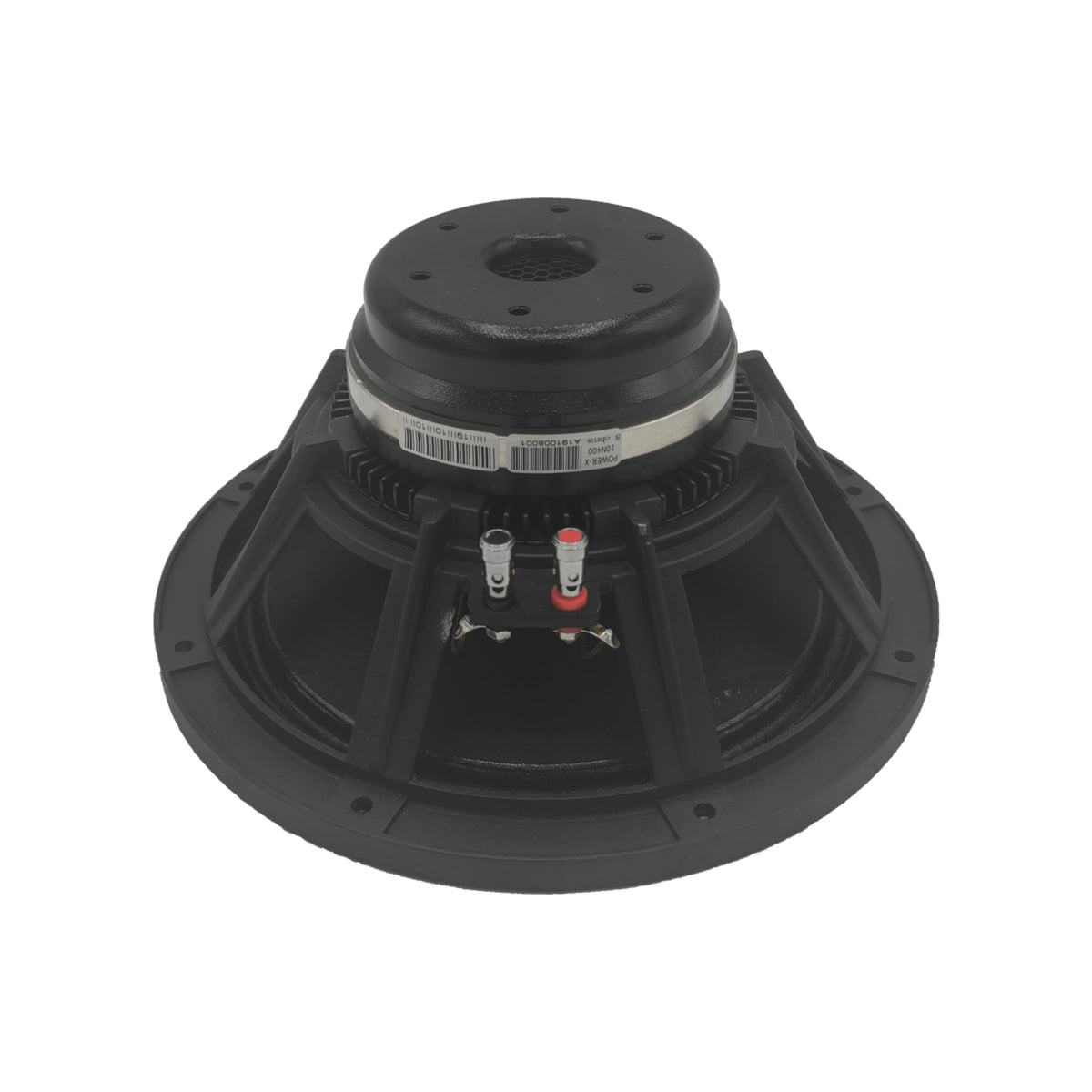

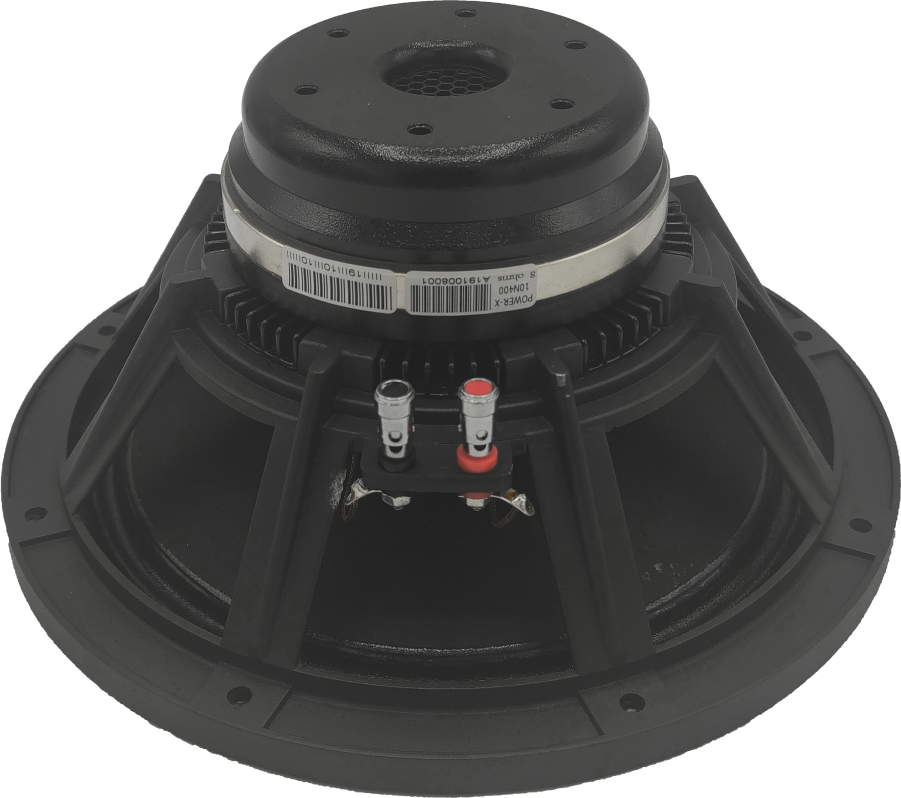

10 N 400

Name: 10 N 400
Brand: POWERX PRO
Availability: InStock

The 10 N 400 is an incredibly potent 10-inch mid-bass transducer hailing from the elite PRO SERIES. Designed as a premier acoustic component, it is the ultimate choice for building compact line arrays, high-fidelity stage fills, and highly portable 2-way touring enclosures.

Punching far above its weight class in acoustic output, it boasts an impressive 400 AES Watts of continuous handling and an 800-Watt program power threshold. Coupled with a 97 dB sensitivity (1W/1M), it delivers spectacular overall loudness and fierce dynamic headroom, ensuring clarity is preserved during extreme transient peaks.

Advanced driver technology is the core of this model, featuring a robust 75.5 mm (3-inch) voice coil driven by an ultra-light Neodymium magnet structure. This combination ensures hyper-fast mechanical response, allowing for phase-accurate, tightly controlled sound dispersion across the listening area.

The driver maintains flawless fidelity across a frequency range of 65 Hz to 2.5 KHz, supported by a resonant frequency (Fs) of 64 Hz. Its sonic character provides tight, punchy low-mids and brilliantly transparent mid-range frequencies, guaranteeing supreme crossover efficiency and acoustic purity.

Engineered into a highly compact form factor, it measures 262 mm in diameter with a shallow 116 mm depth. Weighing a mere 3.8 Kg thanks to its Neodymium motor, this 8 ohms transducer provides system builders with an exceptionally reliable, road-worthy solution that drastically minimizes enclosure weight.

More information

Professional Design: 10-inch professional mid-bass driver engineered for high-performance sound reinforcement and touring loudspeaker systems.

High Power Handling: Delivers 400 W AES continuous power and 800 W program power for demanding professional audio applications.

High Efficiency: 97 dB (1 W / 1 m) sensitivity provides exceptional acoustic output with excellent system efficiency.

Wide Mid-Bass Frequency Response: Covers 65 Hz – 2.5 kHz, delivering tight low-mid frequencies and natural, articulate vocal reproduction.

Large 3-Inch Voice Coil: Features a 75.5 mm (3-inch) voice coil for superior thermal stability, increased power handling, and long-term reliability.

Neodymium Magnet Structure: Lightweight, high-flux neodymium magnet ensures powerful magnetic performance, fast transient response, and reduced overall driver weight.

Clean Audio Performance: Produces accurate midrange, tight bass response, and low distortion for professional-grade sound quality.

Optimized System Integration: Designed for seamless integration with high-frequency compression drivers in 2-way and multi-way loudspeaker systems.

Lightweight & Rugged Construction: Compact, durable design with a lightweight neodymium motor makes it ideal for portable PA systems and touring applications.

Professional Applications: Ideal for compact line arrays, stage monitors, front-fill systems, portable PA speakers, touring systems, auditoriums, houses of worship, rental companies, and professional sound reinforcement installations.

Technical specification

Following is the technical specification of 10 N 400 :-
400 AES Watt / 800 Program Power
75.5 mm (3 inch voice coil)
97 dB 1w @1m sensitivity
65 Hz to 2.5 KHz Frequency response
Neodymium Magnet Structure
