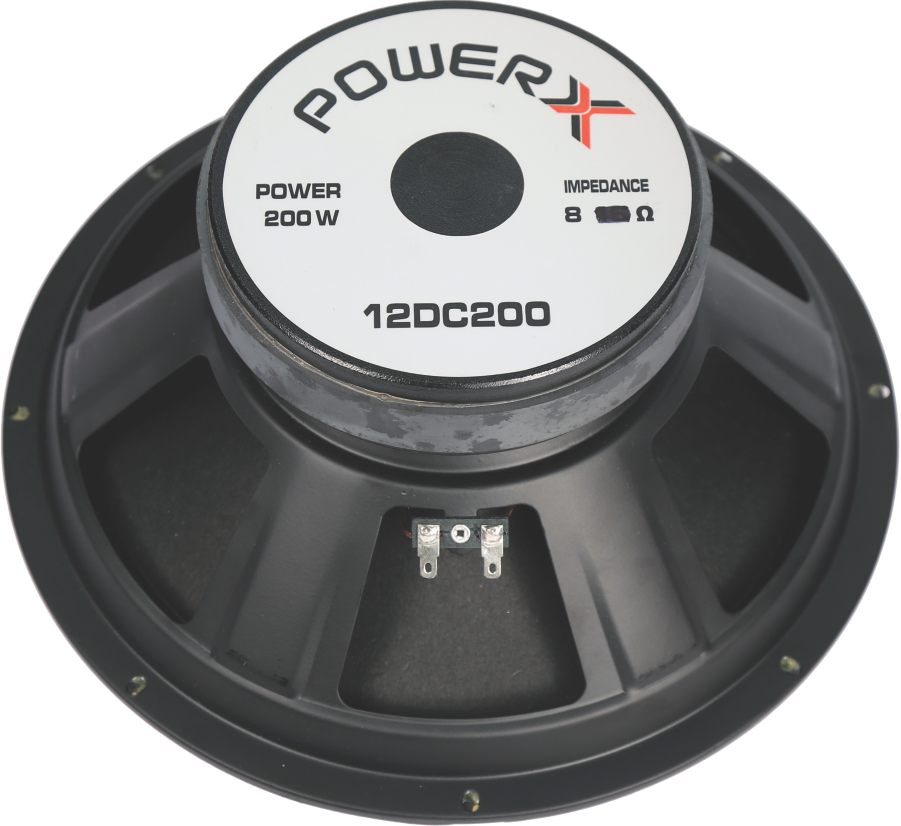

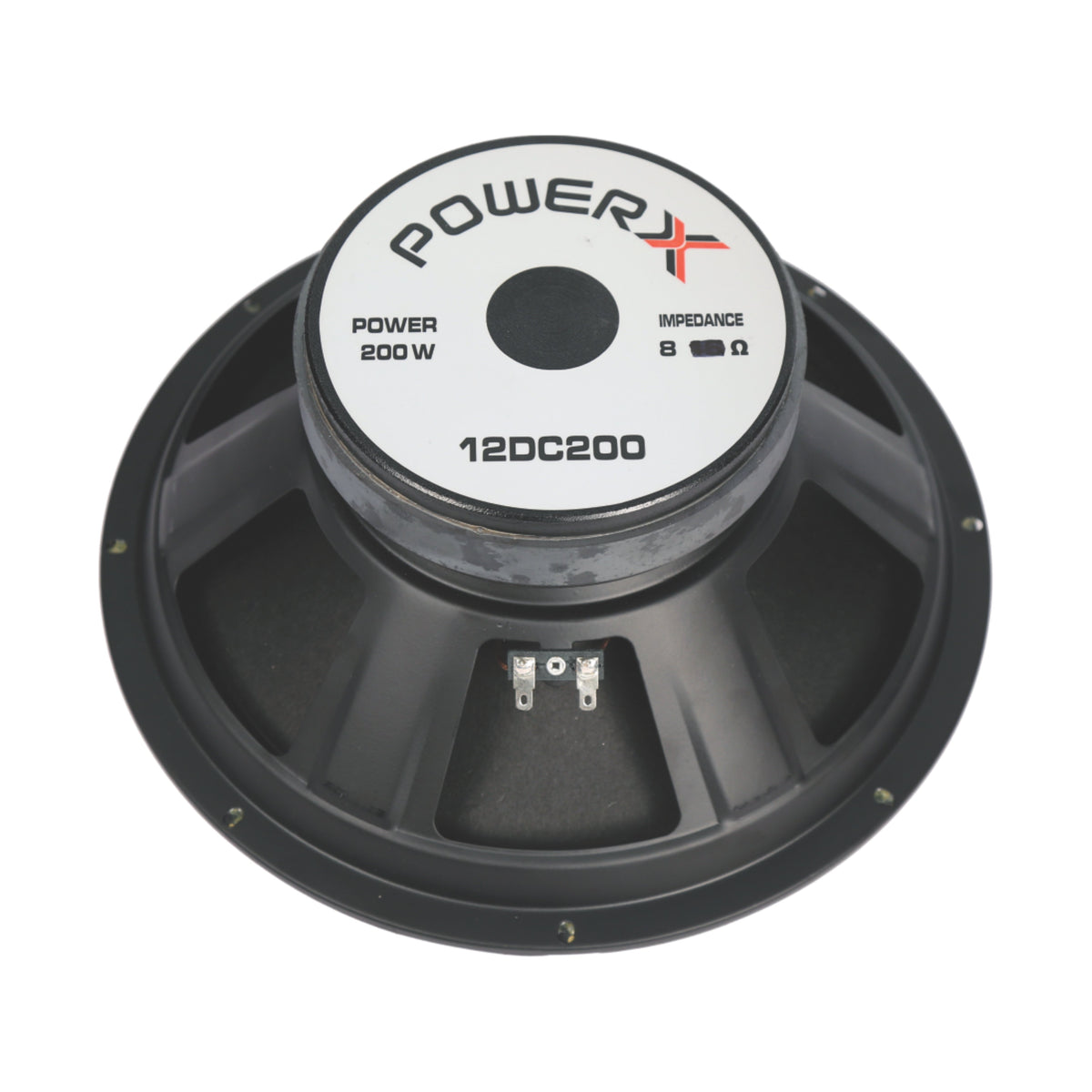

12 DC 200

Name: 12 DC 200
Brand: POWERX PRO
Availability: InStock

The 12 DC 200 is a unique 12-inch full-range transducer from the renowned PRO SERIES. Serving as a specialized acoustic solution, this Dual Cone driver is perfect for vocal-heavy public address systems, background music installations, and streamlined single-driver stage monitors.

Delivering highly focused acoustic output, it handles a continuous 200 AES Watts and easily navigates peak program power of 400 Watts. With a sensitivity rating of 97 dB (1W/1M), this speaker provides excellent overall loudness and ample dynamic headroom, retaining strict vocal clarity even at high operational volumes.

At the heart of its internal acoustics is a 50 mm (2-inch) voice coil paired with a durable Ferrite magnet structure. Because it features a specialized Dual Cone design, this driver efficiently reproduces higher frequencies without a separate compression driver, guaranteeing wide and consistent coverage.

As a full-range unit, it provides an extended frequency response of 55 Hz to 1.6 KHz (with higher frequency extension implied by the dual cone) and a resonant frequency (Fs) of 52.8 Hz. This creates a sonic character noted for clear, transparent mids and tight upper-bass, eliminating the need for complex crossover networks.

Built to endure constant venue use, it has an overall diameter of 316 mm and a chassis depth of 140 mm. Weighing 9 Kg and rated at 8 ohms impedance, this incredibly reliable, road-worthy transducer is ready for immediate mounting in your professional hardware.

More information

Professional Design: 12-inch full-range dual cone driver engineered for professional sound reinforcement and public address applications.

High Power Handling: Delivers 200 W AES continuous power and 400 W program power for reliable high-output performance.

High Efficiency: 97 dB (1 W / 1 m) sensitivity ensures excellent acoustic output with superior system efficiency.

Full-Range Audio Reproduction: Dual cone design delivers balanced low, mid, and extended high-frequency response without requiring a separate high-frequency driver.

Large 2-Inch Voice Coil: Features a 50 mm (2-inch) voice coil for improved thermal stability, enhanced power handling, and consistent long-term performance.

Ferrite Magnet Structure: High-performance ferrite magnet provides strong magnetic flux for accurate cone control and dependable operation.

Clear Vocal Performance: Optimized for articulate speech, natural vocals, and balanced music reproduction with excellent midrange clarity.

Simplified System Design: Full-range operation minimizes the need for complex crossover networks, making it ideal for single-driver loudspeaker systems.

Rugged Construction: Durable frame and professional-grade components ensure reliable performance in demanding touring and installed sound applications.

Professional Applications: Ideal for public address systems, stage monitors, background music systems, portable PA speakers, auditoriums, educational institutions, houses of worship, commercial installations, and full-range loudspeaker enclosures.

Technical specification

Following is the technical specification of 12 DC 200 :-
200 AES Watt / 400 Program Power
50 mm (2 inch voice coil)
97 dB 1w @1m sensitivity
Full Range Frequency response
Ferrite Magnet Structure
Dual Cone
