12 M 300

Name: 12 M 300
Brand: POWERX PRO
Availability: InStock

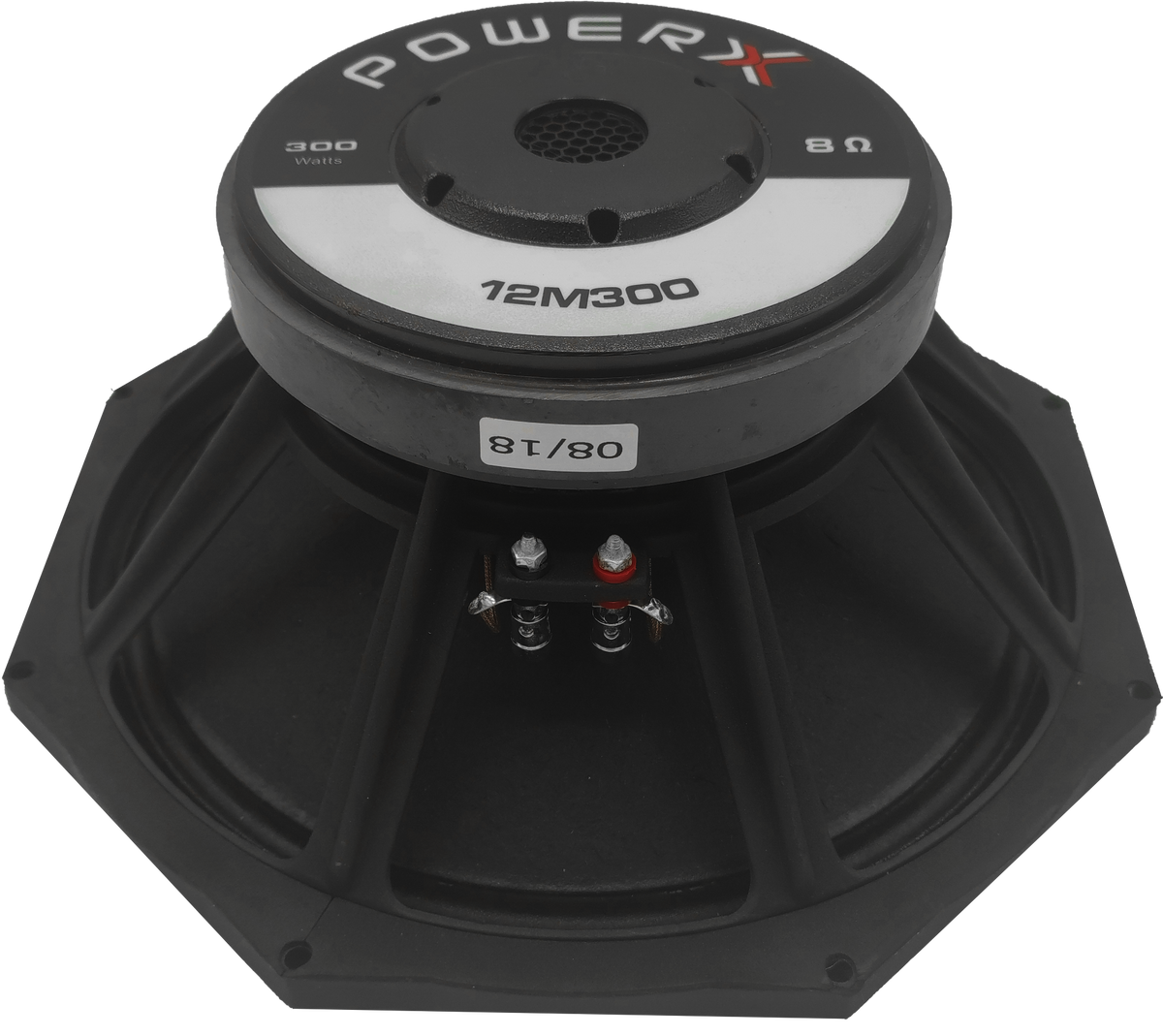

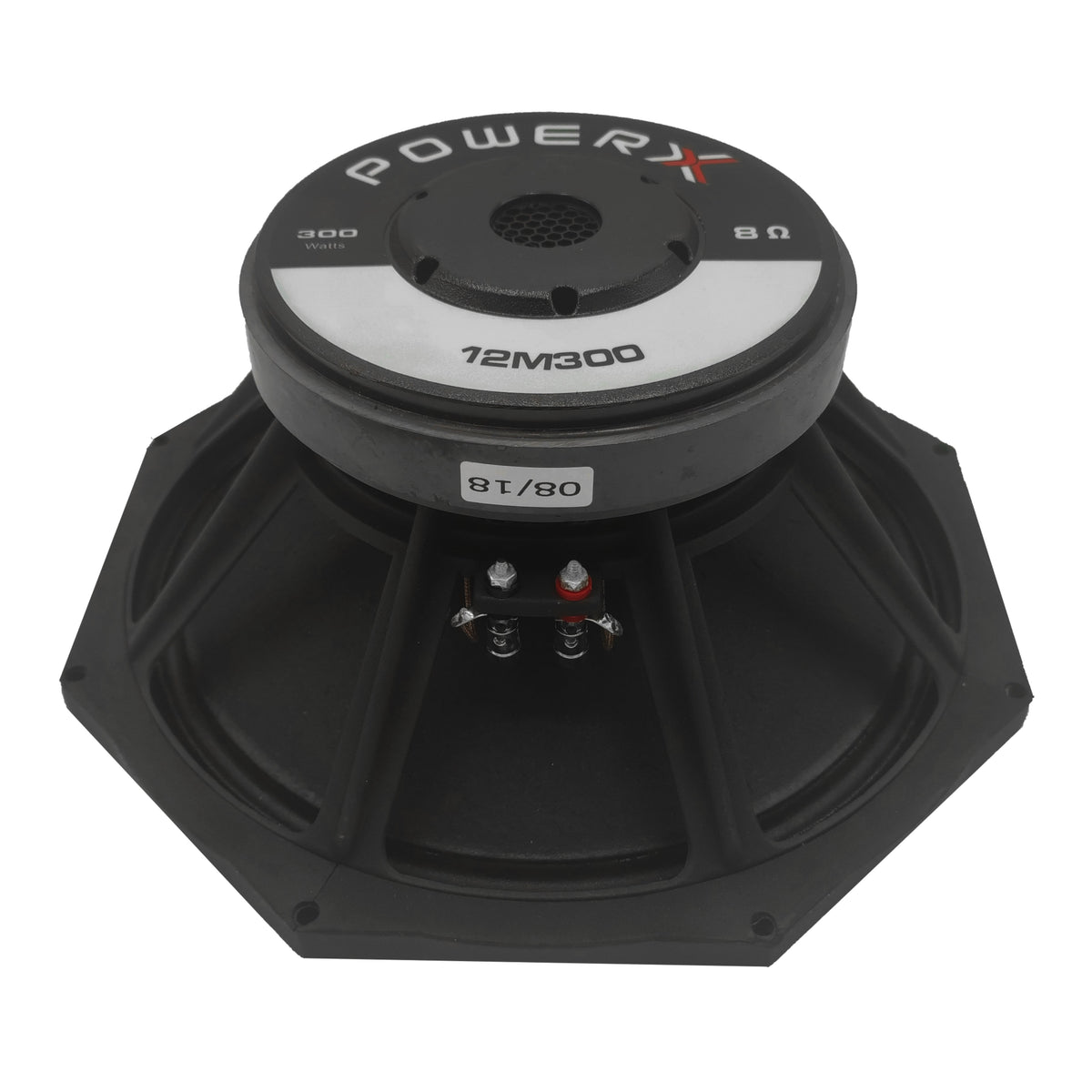

The 12 M 300 is a versatile 12-inch driver from the professional-grade PRO SERIES. Designed to be a highly dependable acoustic solution, this transducer is excellently suited for mid-sized stage monitoring, distributed venue audio, and compact 2-way PA systems.

Prioritizing clean acoustic output, it operates with a power handling capacity of 300 AES Watts and easily manages peak program power up to 600 Watts. A steady sensitivity of 97 dB (1W/1M) ensures that the driver provides excellent overall loudness while maintaining necessary dynamic headroom for clear, distortion-free audio.

The driver technology is centered around a 75.5 mm (3-inch) voice coil anchored by a reliable Ferrite magnet structure. This sturdy configuration provides excellent cone stability, ensuring that sound dispersion remains consistent and phase-accurate, perfectly covering the intended listening zone.

Its frequency response is finely tuned from 55 Hz to 2.5 KHz, supported by a resonant frequency (Fs) of 57 Hz. The resulting sonic character is highly articulate, delivering tight mid-bass and notably transparent mid-range clarity for superior crossover efficiency.

Housed in a rugged frame with a 316 mm overall diameter and 140 mm depth, the unit is engineered for long-term physical durability. Weighing in at 9 Kg with an 8 ohms nominal impedance, this road-worthy transducer guarantees solid performance when integrated into professional enclosure hardware.

More information

Professional Design: 12-inch professional mid-bass driver engineered for high-performance sound reinforcement and loudspeaker systems.

High Power Handling: Delivers 300 W AES continuous power and 600 W program power for demanding professional audio applications.

High Efficiency: 97 dB (1 W / 1 m) sensitivity ensures high acoustic output with excellent system efficiency.

Wide Frequency Response: Covers 55 Hz – 2.5 kHz, delivering powerful low-mid frequencies and clear, natural vocal reproduction.

Large 3-Inch Voice Coil: Features a 75.5 mm (3-inch) voice coil for superior thermal stability, enhanced power handling, and long-term reliability.

Ferrite Magnet Structure: High-performance ferrite magnet provides strong magnetic flux for accurate cone control and consistent performance.

Clean Audio Performance: Produces tight mid-bass, articulate vocals, and transparent midrange with low distortion for professional-grade sound quality.

Optimized System Integration: Designed for seamless integration with high-frequency compression drivers in 2-way and multi-way loudspeaker systems.

Rugged Construction: Durable frame and professional-grade components ensure dependable performance in touring, rental, and installed sound applications.

Professional Applications: Ideal for stage monitors, compact PA systems, 2-way loudspeakers, auditoriums, houses of worship, rental companies, commercial installations, educational institutions, and professional sound reinforcement systems.

Technical specification

Following is the technical specification of 12 M 300 :-
300 AES Watt / 600 Program Power
75.5 mm (3 inch voice coil)
97 dB 1w @1m sensitivity
55 Hz to 2.5 KHz Frequency response
Ferrite Magnet Structure
