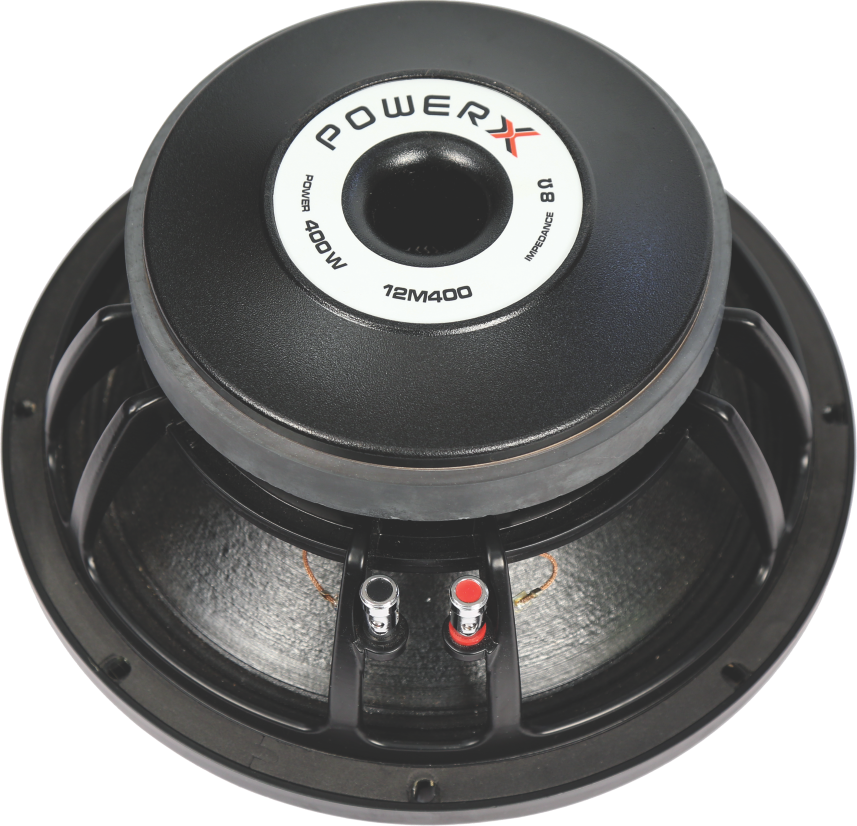

The 12 M 400 is a highly robust 12-inch transducer proudly featured in the PRO SERIES. Framed as a heavy-duty acoustic solution, it is the perfect driver for building rugged 2-way passive mains, versatile stage wedges, and dependable fixed venue installations.
Engineered for strong acoustic output, the unit continuously handles 400 AES Watts with the capacity to peak at an 800-Watt max power threshold. Combining this with a high sensitivity of 99 dB (1W/1M), the speaker delivers commanding overall loudness and exceptional dynamic headroom, retaining strict clarity at high volumes.
The internal acoustics are built around a durable 75.5 mm (3.5-inch) voice coil combined with a time-tested Ferrite magnet structure. This proven driver technology guarantees resilient mechanical performance, projecting consistent and phase-accurate sound reinforcement across wide audience areas.
Fidelity is paramount, evidenced by a broad frequency response from 55 Hz to 2.5 KHz and a tuned resonant frequency (Fs) of 55 Hz. This tuning provides a distinctly warm sonic character featuring punchy, tight bass and transparent mids, ensuring excellent crossover efficiency and uncompromised acoustic purity.
Designed for extreme physical endurance, the chassis features a 316 mm overall diameter and a 140 mm overall depth. Weighing a solid 9 Kg and rated at 8 ohms impedance, this highly reliable, road-worthy transducer is ready to be loaded into heavily rigged professional enclosures.
More information
More information
Technical specification
Technical specification
Following is the technical specification of 12 M 400 :-
