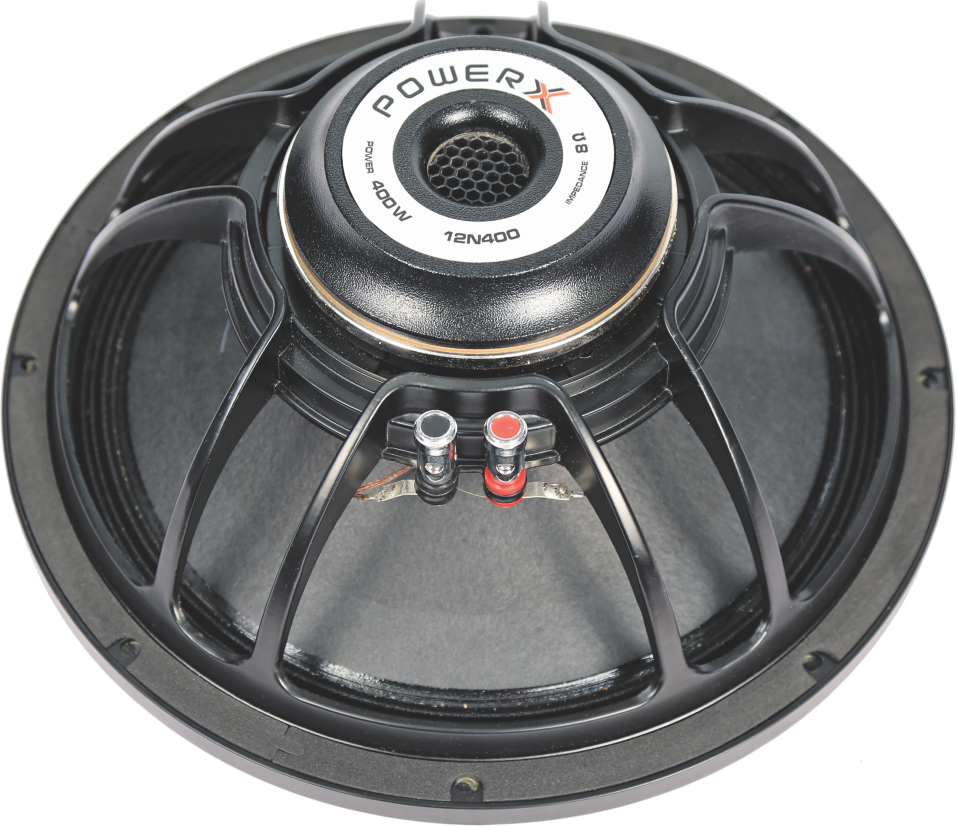

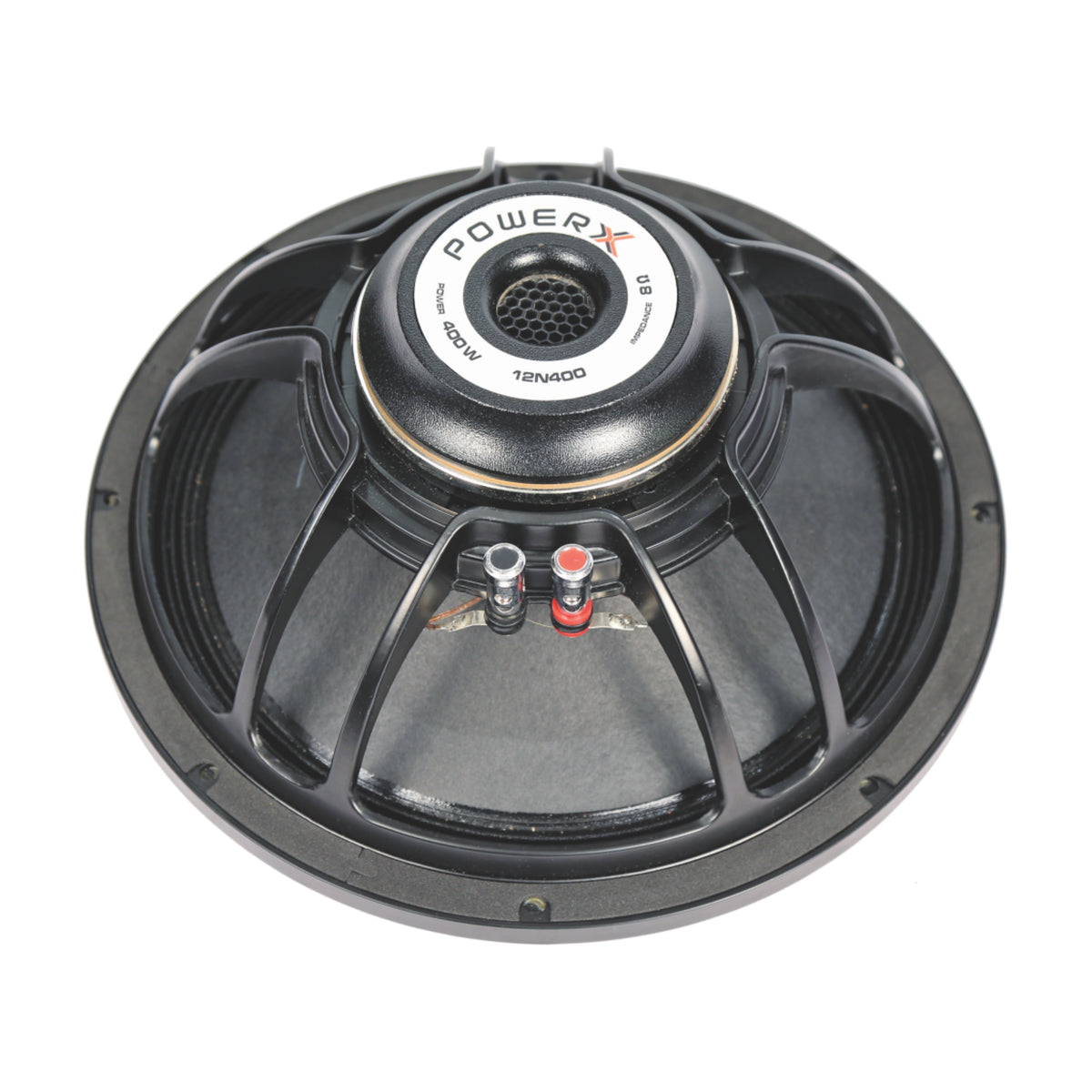

12 N 400

Name: 12 N 400
Brand: POWERX PRO
Availability: InStock

The 12 N 400 is an ultra-efficient 12-inch transducer from the premium PRO SERIES. Serving as a premier acoustic engine, this driver is masterfully designed for integration into lightweight touring rigs, active 2-way enclosures, and high-fidelity stage monitors.

Optimized for brilliant acoustic output, it effortlessly handles 400 AES Watts continuously while supporting peak program power up to 800 Watts. A stellar sensitivity rating of 99 dB (1W/1M) allows it to achieve massive overall loudness with minimal power, preserving immense dynamic headroom and clarity at high performance levels.

The core of its driver technology features a 75.5 mm (3-inch) voice coil driven by an advanced, lightweight Neodymium magnet structure. This highly reactive magnetic assembly provides stringent cone control, translating to highly accurate, consistent coverage that reaches every corner of the venue.

With a frequency response spanning 55 Hz to 2.5 KHz and a resonant frequency (Fs) of 49 Hz, it is tuned for absolute fidelity. The sonic character is incredibly articulate, delivering tight mid-bass and brilliantly transparent mid-range frequencies, resulting in outstanding crossover efficiency.

Engineered into a chassis measuring 316 mm in diameter and 130 mm deep, it is astoundingly light at only 3 Kg. Operating at a nominal 8 ohms impedance, this driver provides audio professionals with a deeply reliable, road-worthy solution that drastically reduces the weight of custom enclosure hardware.

More information

Key Features

Professional Design: 12-inch professional mid-bass driver engineered for lightweight touring systems, stage monitors, and high-performance loudspeaker enclosures.

High Power Handling: Delivers 400 W AES continuous power and 800 W program power for demanding professional audio applications.

High Efficiency: 99 dB (1 W / 1 m) sensitivity provides exceptional acoustic output with excellent system efficiency.

Wide Frequency Response: Covers 55 Hz – 2.5 kHz, delivering powerful low-mid frequencies and natural, detailed vocal reproduction.

Large 3-Inch Voice Coil: Features a 75.5 mm (3-inch) voice coil for superior thermal stability, enhanced power handling, and consistent long-term performance.

Neodymium Magnet Structure: Lightweight, high-flux neodymium magnet delivers powerful magnetic performance, fast transient response, and significantly reduces overall driver weight.

Optimized Mid-Bass Performance: Produces tight, punchy bass with excellent midrange clarity, making it ideal for professional 2-way and multi-way loudspeaker systems.

Reliable Acoustic Performance: Engineered for low distortion, excellent dynamic headroom, and consistent output during continuous high-power operation.

Lightweight & Rugged Construction: Compact, durable design with a lightweight 3 kg neodymium motor makes it ideal for portable PA systems and touring applications.

Professional Applications: Ideal for lightweight touring systems, active 2-way loudspeakers, stage monitors, portable PA speakers, auditoriums, houses of worship, rental companies, commercial installations, and professional sound reinforcement systems.

Technical specification

Following is the technical specification of 12 N 400 :-
400 AES Watt / 800 Program Power
75.5 mm (3 inch voice coil)
99 dB 1w @1m sensitivity
55 Hz to 2.5 KHz Frequency response
Neodymium Magnet Structure
