12 N 600

Name: 12 N 600
Brand: POWERX PRO
Availability: InStock

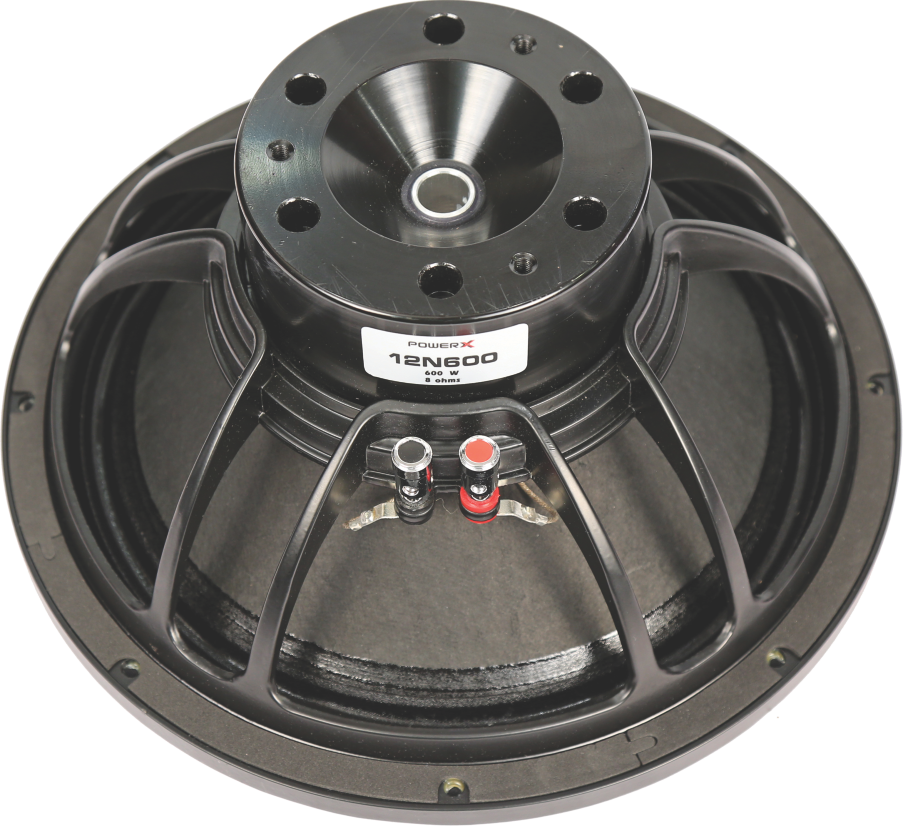

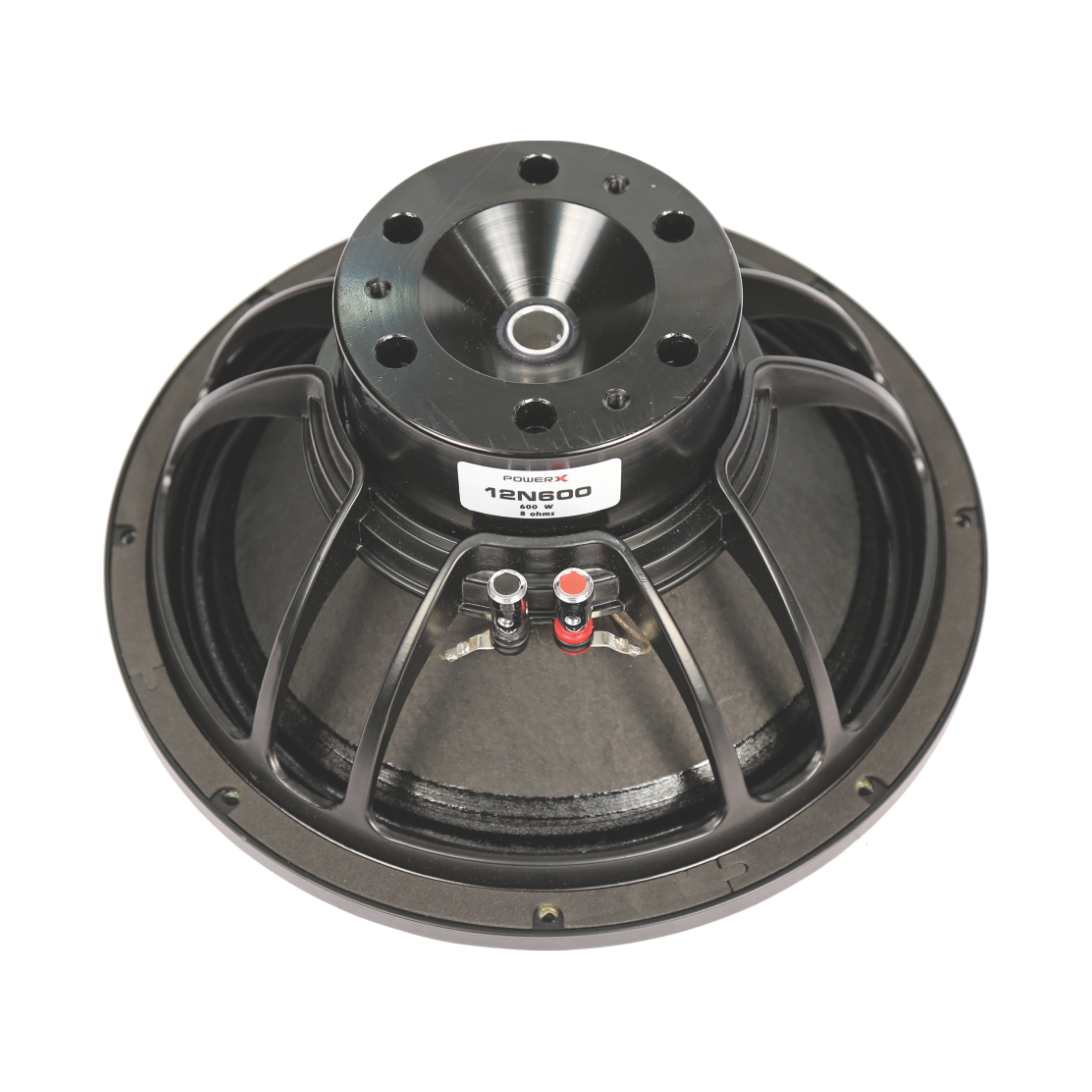

The 12 N 600 is a high-performance 12-inch transducer representing the cutting-edge of the PRO SERIES. Engineered as a premium acoustic powerhouse, it is the ideal mid-bass driver for advanced line arrays, elite stage monitoring, and highly portable touring enclosures.

Despite its compact footprint, it delivers massive acoustic output with a power handling capacity of 600 AES Watts and 1200 Watts max program power. Supported by a 97 dB (1W/1M) sensitivity rating, this transducer offers explosive dynamic headroom and high overall loudness, remaining exceptionally clear even when driven at extreme volumes.

Internal acoustics are governed by an 88.9 mm (3.5-inch) voice coil powered by a highly efficient Neodymium magnet structure. This elite driver technology ensures lightning-fast transient response and guarantees remarkably consistent, phase-accurate coverage throughout the audience.

The frequency response is incredibly broad, reaching from 50 Hz all the way up to 5 KHz with a resonant frequency (Fs) of 49 Hz. This gives it a highly versatile sonic character featuring punchy, tight bass and incredibly transparent, extended mids, ensuring flawless crossover efficiency and absolute acoustic purity.

Measuring 316 mm in diameter and just 145 mm deep, its Neodymium motor brings the total weight down to a remarkably light 5 Kg. Rated at 8 ohms impedance, this exceptionally reliable, road-worthy driver minimizes enclosure weight without ever compromising on professional-grade hardware quality.

More information

Professional Design: 12-inch professional mid-bass driver engineered for advanced touring systems, line arrays, stage monitors, and high-performance loudspeaker enclosures.

High Power Handling: Delivers 600 W AES continuous power and 1200 W program power for the most demanding professional audio applications.

High Efficiency: 97 dB (1 W / 1 m) sensitivity provides high acoustic output with excellent system efficiency and dynamic performance.

Wide Frequency Response: Covers 50 Hz – 5 kHz, delivering deep, punchy bass, articulate midrange, and extended frequency coverage.

Large 3.5-Inch Voice Coil: Features an 88.9 mm (3.5-inch) voice coil for superior thermal management, enhanced power handling, and long-term reliability.

Neodymium Magnet Structure: Lightweight, high-flux neodymium magnet delivers exceptional magnetic efficiency, fast transient response, and significantly reduces overall driver weight.

Exceptional Audio Performance: Produces tight low frequencies, transparent midrange, and low distortion for accurate, high-fidelity sound reproduction.

Optimized System Integration: Designed for seamless integration into professional 2-way, 3-way, and line array loudspeaker systems with excellent crossover performance.

Lightweight & Rugged Construction: Compact, durable design with a lightweight 5 kg neodymium motor makes it ideal for portable PA systems and touring applications.

Professional Applications: Ideal for line arrays, stage monitors, touring systems, active and passive loudspeakers, auditoriums, houses of worship, rental companies, commercial installations, and professional sound reinforcement systems.

Technical specification

Following is the technical specification of 12 N 600 :-
600 AES Watt / 1200 Program Power
88.9 mm (3.5 inch voice coil)
97 dB 1w @1m sensitivity
50 Hz to 5 KHz Frequency response
Neodymium Magnet Structure

Ask for a Quote
