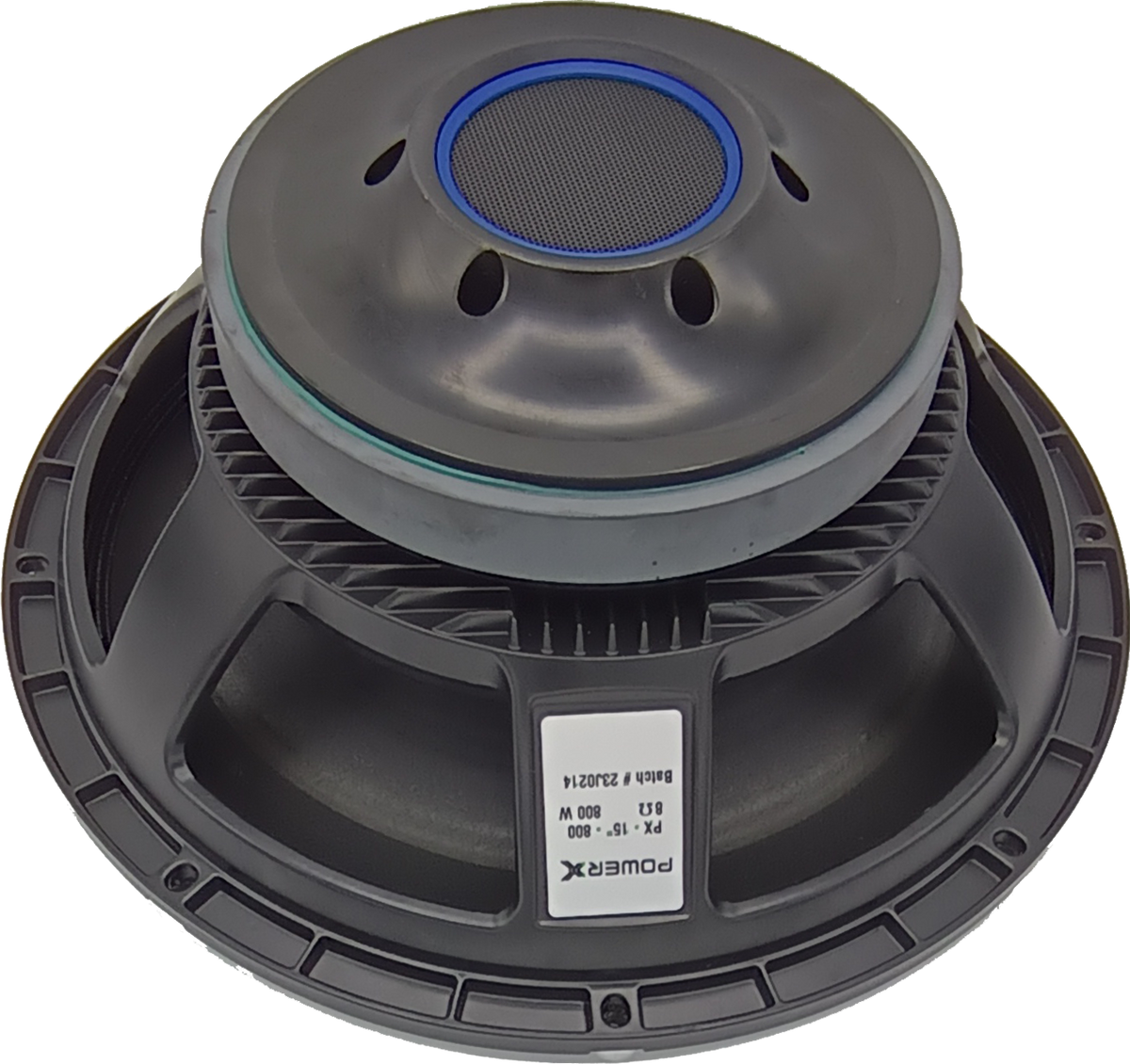

15 D 800

15 D 800

Introducing the 15 D 800, a highly versatile standout in the Dynamo Series designed as a premier acoustic solution for dynamic audio applications. As a high-performance 15-inch transducer, it bridges the gap perfectly between dedicated subwoofers and aggressive low-mid drivers. Its highly articulate response makes it an ideal choice for compact touring systems, stage monitoring wedges, and high-fidelity fixed venue installations. When integrated into 2-way passive or active designs, it delivers the critical punch and presence needed for world-class live sound reinforcement.

Acoustic output and power handling are optimized to provide punchy, reliable performance without requiring massive power plants. It operates efficiently with a continuous power handling of 800 AES Watts and cleanly processes transients up to 1600 Watts maximum power. Coupled with a strong sensitivity of 96 dB (1w/1m), it converts moderate amplification into aggressive overall loudness. The driver boasts excellent dynamic headroom, ensuring that critical snare hits, bass guitar lines, and kick drums maintain their distinct clarity and attack even when the system is pushed to extreme volumes.

The driver technology inside the unit ensures precise, fatigue-free audio reproduction. The 15-inch nominal diameter is meticulously controlled by a heavy-duty 100 mm (4-inch) voice coil, providing the perfect balance of mass and electromagnetic control. A high-strength ferrite magnet structure aggressively drives a lightweight but rigid air-dried paper cone. This combination ensures a highly predictable, phase-accurate energy throw, allowing for consistent and tightly controlled coverage over the audience area before integrating with a high-frequency horn.

Detailing a highly musical frequency response, this transducer performs beautifully from a deep 40 Hz all the way up to a crisp 2 KHz. This expansive range allows the sonic character to showcase exceptionally tight bass alongside wonderfully transparent and forward mid-range frequencies. This broad acoustic purity allows for highly flexible crossover points, enabling audio technicians to seamlessly blend this driver with larger format compression drivers to achieve a crystal-clear, full-range sonic signature.

Real-world value and physical ruggedness are engineered directly into the chassis. Prepared for installation into rugged polymer or Baltic birch enclosures, it utilizes a 357 mm baffle cut-out for incredibly tight, rattle-free mounting. Featuring an industry-standard nominal impedance of 8 ohms, it is easily paired with any professional amplifier rack. At an easily manageable weight of just 10.25 kg, it is incredibly friendly for touring crews and riggers, promising years of unyielding reliability on the road.
