18 LFB 1000

Name: 18 LFB 1000
Brand: POWERX PRO
Availability: InStock

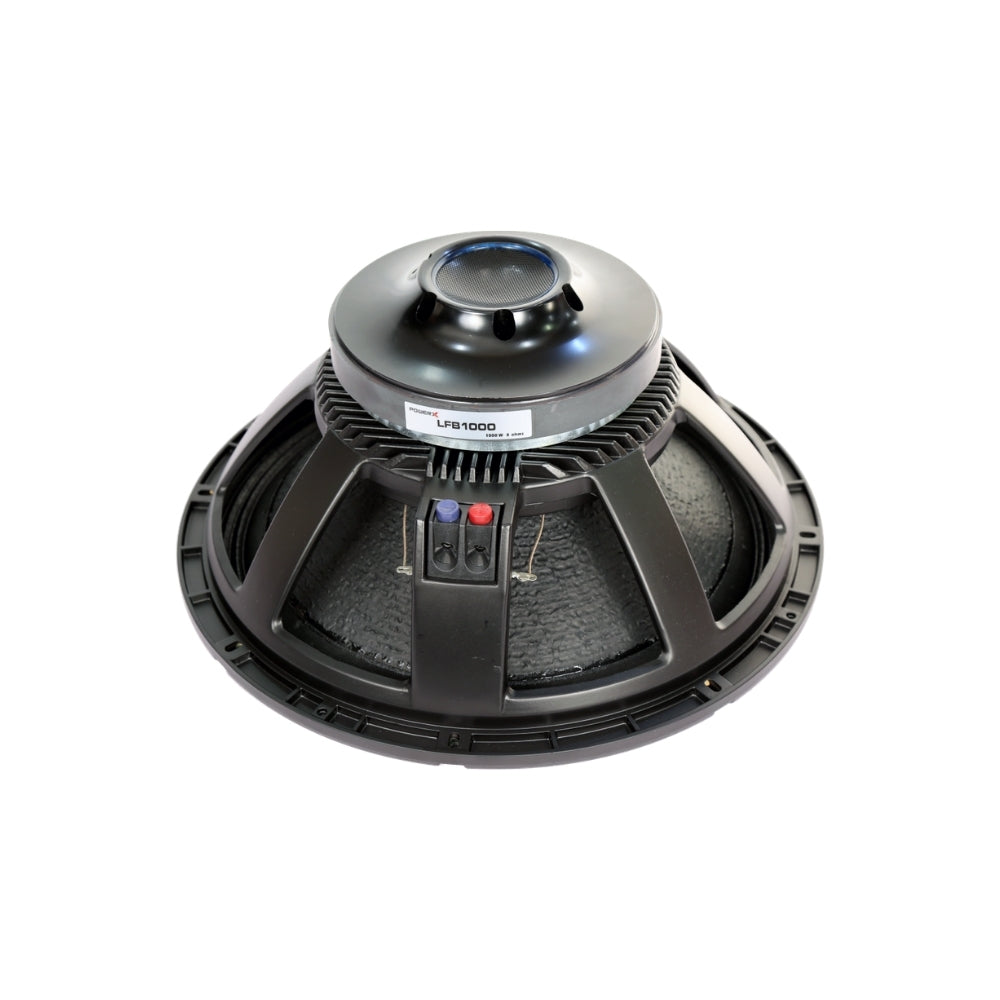

The 18 LFB 1000 is an authoritative 18-inch low-frequency transducer from the PRO SERIES line of acoustic components. Crafted as a premium audio engine for professional live sound engineers, it is an ideal choice for constructing deep-diving subwoofers tailored for club installs and touring stages.

It generates intense acoustic output, supported by a continuous power handling of 1000 AES Watts and an impressive peak threshold of 2000 Watts. With a sensitivity of 97.5 dB (1W/1M), it is optimized to provide significant overall loudness and the vital dynamic headroom required to deliver distortion-free hits at extreme volumes.

The driver technology revolves around a resilient 100 mm (4-inch) voice coil mated to a heavy Ferrite magnet structure. Utilizing a traditional high-strength paper cone, it creates a massive surface area that pushes serious air, ensuring phase-accurate and highly impactful coverage for any crowd.

Operating with extreme low-end extension, the frequency response spans from an ultra-deep 25 Hz up to 1.5 KHz, anchored by a superb resonant frequency (Fs) of 28 Hz. This results in a sonic character characterized by cavernous, tight bass reproduction and pure acoustic fidelity that effortlessly bridges to your mid-range crossover.

Designed with structural integrity in mind, it features an overall diameter of 462 mm and a chassis depth of 207 mm. Weighing 21 Kg with a nominal 8 ohms impedance, this heavy-duty driver guarantees supreme road-worthiness and reliability when mounted in rugged professional enclosures.

More information

18 LFB 1000 — Key Features
1000 W AES Power Handling

The 18 LFB 1000 is engineered for demanding professional sound reinforcement, delivering 1000 W AES continuous power handling and up to 2000 W program power. This substantial power capacity provides the headroom required for powerful, high-output bass reproduction.

Powerful 18-Inch Low-Frequency Transducer

Designed as a professional 18-inch LF driver, the 18 LFB 1000 is an ideal acoustic engine for building high-output subwoofers and low-frequency systems for touring, clubs, live events, and permanent installations.

4-Inch Voice Coil

The robust 100 mm (4-inch) voice coil is designed to handle demanding power levels while maintaining consistent performance during extended operation.

Heavy-Duty Ferrite Magnet Structure

A powerful Ferrite magnet structure provides the driving force required for controlled cone movement and high-output bass reproduction, making the driver suitable for demanding professional environments.

High-Strength Paper Cone

The paper cone provides a responsive and natural low-frequency character while its large 18-inch surface area allows the driver to move substantial volumes of air for impactful bass reproduction.

Ultra-Deep 25 Hz – 1.5 kHz Frequency Response

With a frequency response extending from 25 Hz to 1.5 kHz, the 18 LFB 1000 is engineered for deep and powerful low-frequency reproduction while providing flexibility for system crossover design.

97.5 dB High Sensitivity

The driver delivers 97.5 dB sensitivity (1W/1m), providing efficient acoustic output and allowing professional systems to achieve high SPL with strong dynamic performance.

Deep Bass with 28 Hz Resonant Frequency

With an Fs of 28 Hz, the 18 LFB 1000 is designed for deep low-frequency extension, delivering tight, powerful, and controlled bass that is well suited to subwoofer applications.

High-Performance Motor & Suspension

The driver's engineered parameters include a 25 Tm BL, 340 L Vas, 0.27 Qts, and 9 mm Xmax, providing system designers with a solid foundation for developing optimized professional low-frequency enclosures.

Rugged Professional Construction

With an overall diameter of 462 mm and 207 mm overall depth, the 18 LFB 1000 is built for integration into robust, purpose-designed professional cabinets.

Road-Ready Heavy-Duty Design

At 21 kg, the driver features a substantial professional construction designed to withstand the demands of touring, rental, and high-output sound reinforcement applications.

Technical specification

Following is the technical specification of 18 LFB 1000 :-
1000 AES Watt / 2000 Program Power
100mm (4 inch voice coil)
97 dB 1w @1m sensitivity
25 Hz to 1.5 KHz Frequency response
Ferrite Magnet Structure
Paper Cone

Ask for a Quote
