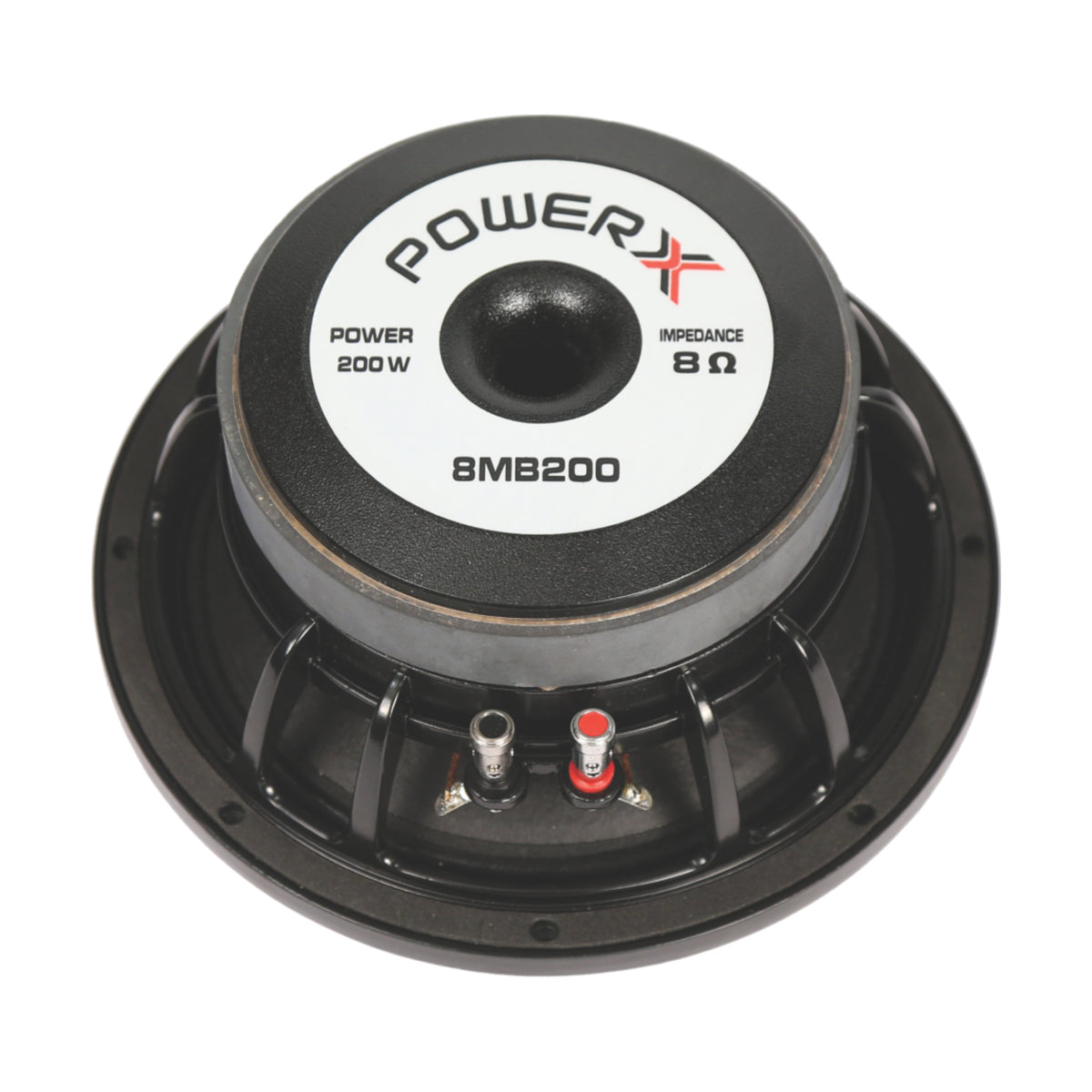

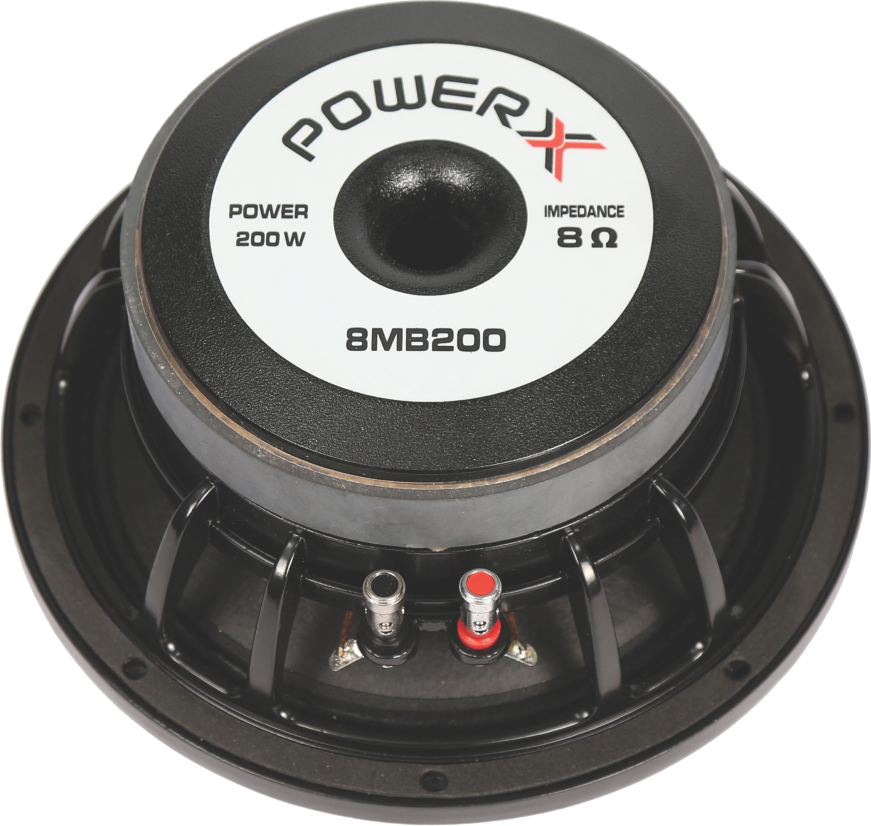

8 MB 200

Name: 8 MB 200
Brand: POWERX PRO
Availability: InStock

The 8 MB 200 is a highly articulate 8-inch mid-bass transducer from the acclaimed PRO SERIES. Crafted as a precision acoustic solution, it is the perfect driver for compact line array modules, front-fill stage systems, and high-fidelity commercial installations.

Despite its small stature, it delivers exceptional acoustic output with a continuous power rating of 200 AES Watts and 400 Watts of program power. Operating with a 95 dB (1W/1M) sensitivity, it guarantees excellent overall loudness and the vital dynamic headroom required to maintain absolute clarity during transient peaks.

The driver technology utilizes a highly accurate 51.5 mm (2-inch) voice coil driven by a robust Ferrite magnet structure. This tight mechanical design enables rapid cone movement, providing highly consistent and phase-accurate coverage that beautifully complements high-frequency drivers.

Acoustic purity is highlighted by a frequency response ranging from 75 Hz to 3 KHz and a tuned resonant frequency (Fs) of 68 Hz. The resulting sonic character is incredibly crisp, producing tight mid-bass and crystalline, transparent mid-range frequencies for flawless crossover network integration.

Housed in a compact, rugged frame, it measures just 210 mm in diameter and 91 mm deep. Weighing only 3.3 Kg with a standard 8 ohms impedance, this exceptionally reliable and road-worthy driver is perfect for minimizing the footprint of your professional enclosure hardware.

More information

Professional Design: 8-inch professional mid-bass driver engineered for high-performance sound reinforcement and loudspeaker systems.

High Power Handling: Delivers 200 W AES continuous power and 400 W program power for demanding professional audio applications.

High Efficiency: 95 dB (1 W / 1 m) sensitivity ensures excellent acoustic output with improved system efficiency.

Wide Mid-Bass Frequency Response: Covers 75 Hz – 3 kHz, providing accurate mid-bass response and natural vocal reproduction.

Large 2-Inch Voice Coil: Features a 51.5 mm (2-inch) voice coil for improved thermal stability, consistent performance, and enhanced power handling.

Ferrite Magnet Structure: High-performance ferrite magnet delivers strong magnetic flux for precise cone control and reliable operation.

Clean Audio Reproduction: Produces tight mid-bass, articulate vocals, and detailed midrange with low distortion for professional sound systems.

Optimized System Integration: Designed for seamless integration with high-frequency compression drivers in 2-way and multi-way loudspeaker systems.

Compact & Rugged Construction: Durable frame with a compact design allows easy integration into portable and installed loudspeaker enclosures.

Professional Applications: Ideal for compact line arrays, stage monitors, front-fill systems, portable PA speakers, commercial installations, auditoriums, houses of worship, rental systems, and touring sound applications.

Technical specification

Following is the technical specification of 8 MB 200 :-
200 AES Watt / 400 Program Power
51.5 mm (2 inch voice coil)
95 dB 1w @1m sensitivity
75 Hz to 3 KHz Frequency response
Ferrite Magnet Structure
