Power
8 ohms stereo power
500w × 2
4 ohms stereo power
800w × 2
2 ohms stereo power
1000w × 2
Other Specification
Frequency response
20Hz – 20 KHz (±0 / -0.5 dB)
THD+N
<0.5%
S/N rate
96 dB
Damping Factor
300
Crosstalk
60 dB
Slew Rate
12v / US
Input Sensitivity
0.775V / 1V / 32db
Input Impedance (bal/unbal)
20k ohms / 10k ohms
Voltage gain (8 ohm)
38.2 dB
Output circuitry
Class 2H
Cooling
Air flow from front to rear
Protection
Soft start, DC short circuit, over load, clip limit, over heat, progressive volume
Connector
Input
Balance input XLR – F
Output
NL 4 SPEAKON Neutrik™
Function

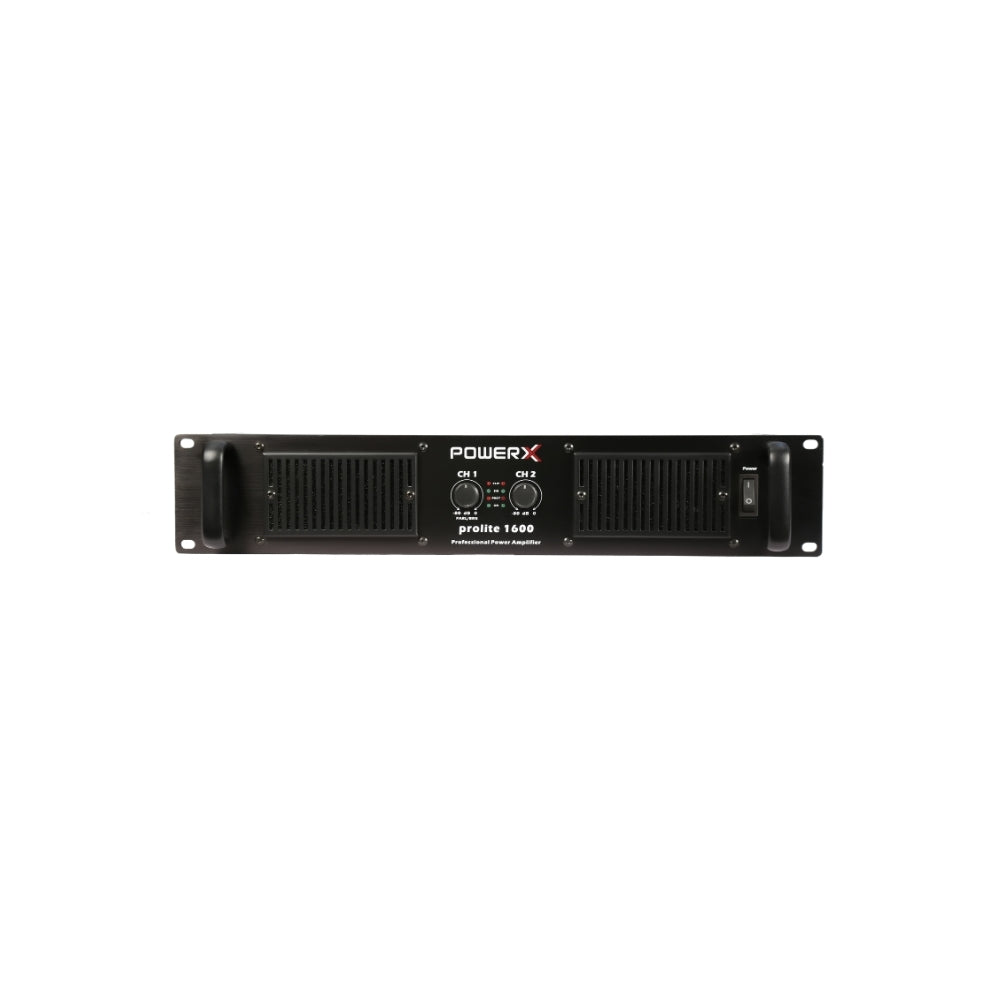

Front Panel
Ship-type power switch, individual volume control knob, power display, SIG indicator, clip indicator, protect indicator

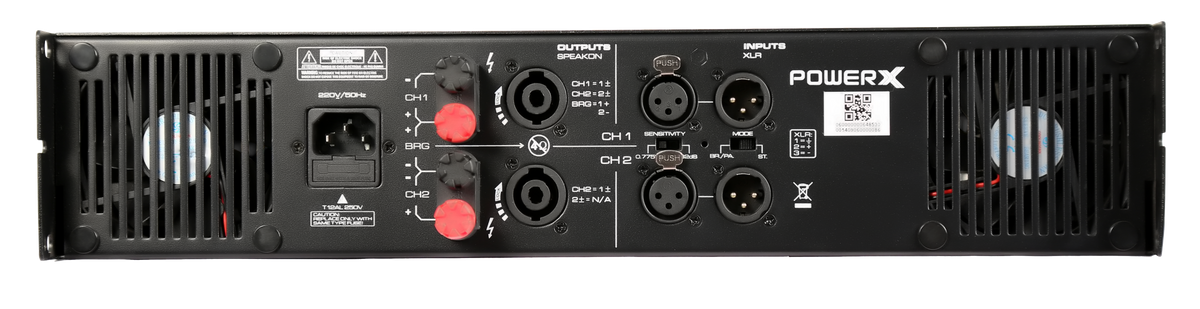

Rear Panel
Mode selector switch, Sensitivity selector switch
Dimension / Weight
Product Dimension (mm)
483 × 402 × 89
Packing Dimension (mm)
595mm × 460mm × 170mm
GW (±2.5 Kg)
18.4 kg
Power Supply
Non removable IEC power cord
AC 240v / 50 Hz ±10
