8 ohms stereo power – 850w × 2
4 ohms stereo power – 1350w × 2
2 ohms stereo power – 1700w × 2
Frequency response – 20Hz – 20 KHz (±0 / -0.5 dB)
THD+N – <0.8%
S/N rate – >96 dB
Damping Factor – >200
Crosstalk – >60 dB
Slew Rate – >15v / US
Input Sensitivity – 0.775V / 1V / 32db
Input Impedance (bal/unbal) – 20k ohms / 10k ohms
Voltage gain (8 ohm) – 40.5 dB
Output circuitry – Class 2H
Cooling – Air flow from front to rear
Protection – Soft start, DC short circuit, over load, clip limit, over heat, progressive volume
Input – Balance input XLR – F
Output – NL 4 SPEAKON Neutrik™

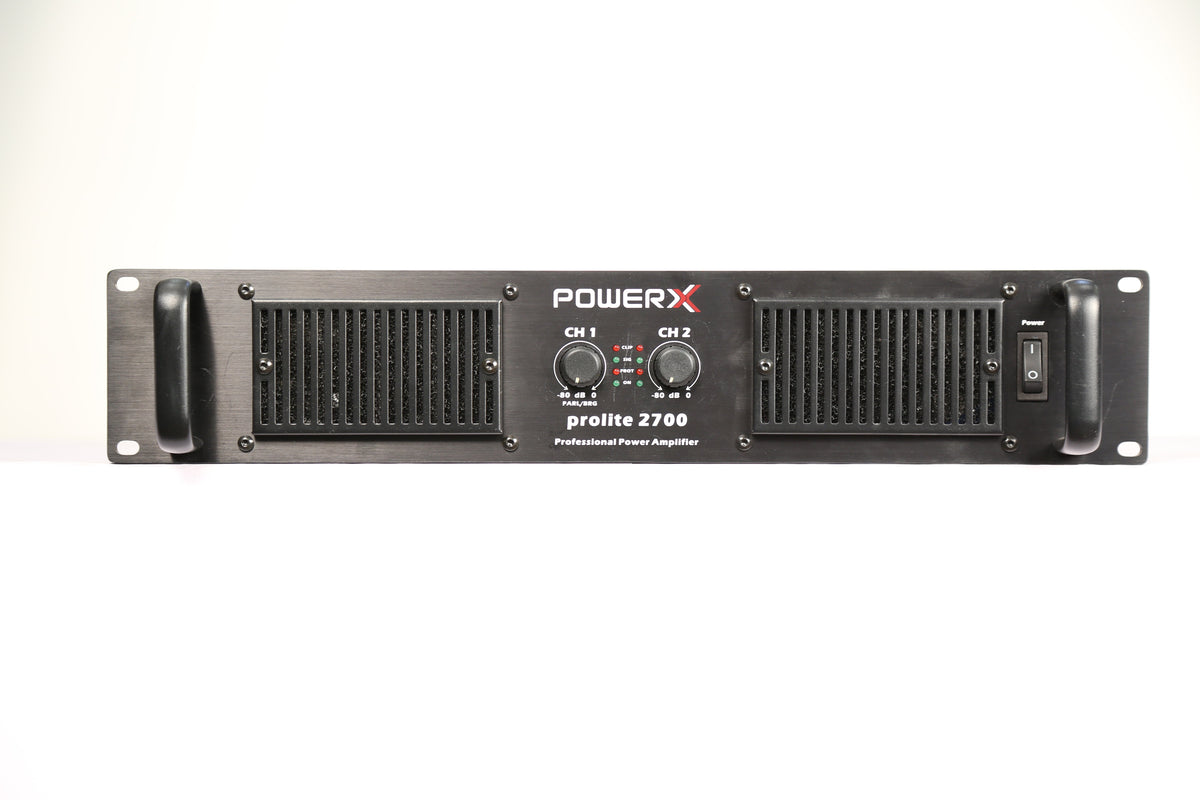

Front Panel – Ship-type power switch, individual volume control knob, power display, SIG indicator, clip indicator, protect indicator

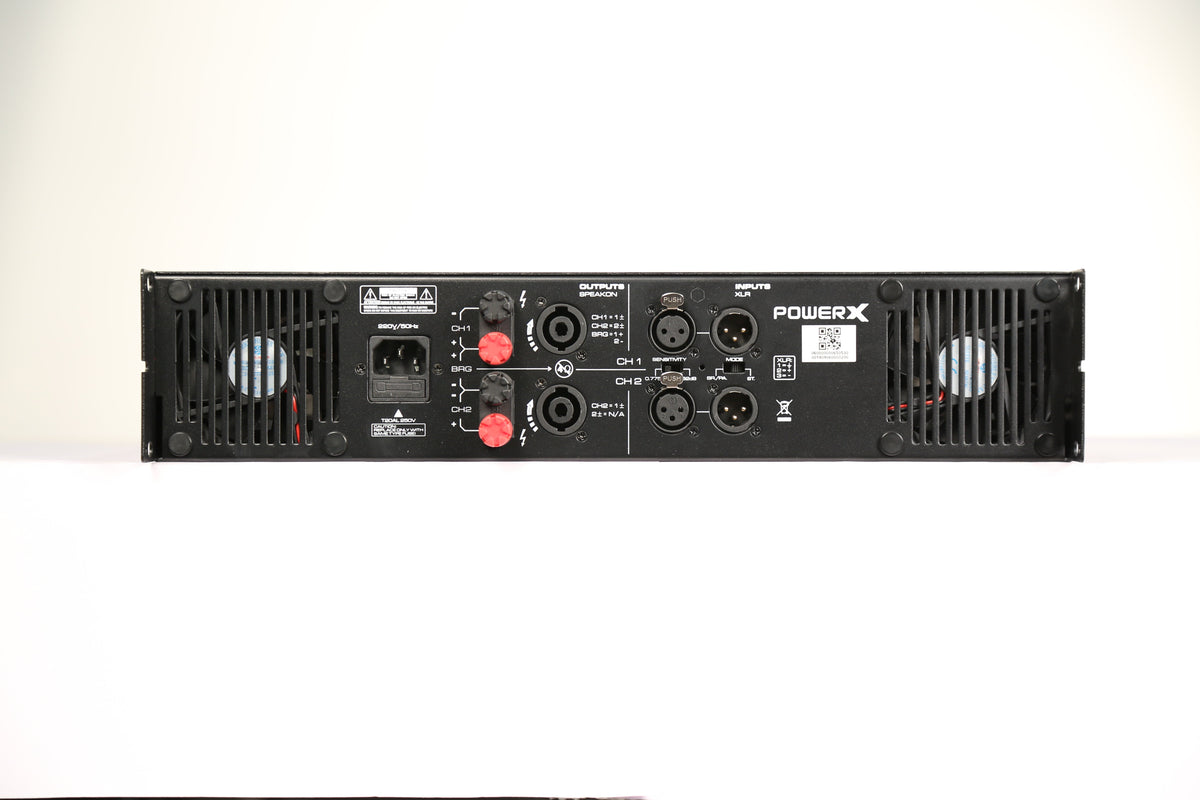

Rear Panel – Mode selector switch, Sensitivity selector switch
Product Dimension (mm) – 483 × 452 × 89
Packing Dimension (mm) – 595mm × 460mm × 170mm
GW (±2.5 Kg) – 24.1 kg
Power Supply – Non removable IEC power cord, AC 240v / 50 Hz ±10
