CS 326

CS 326

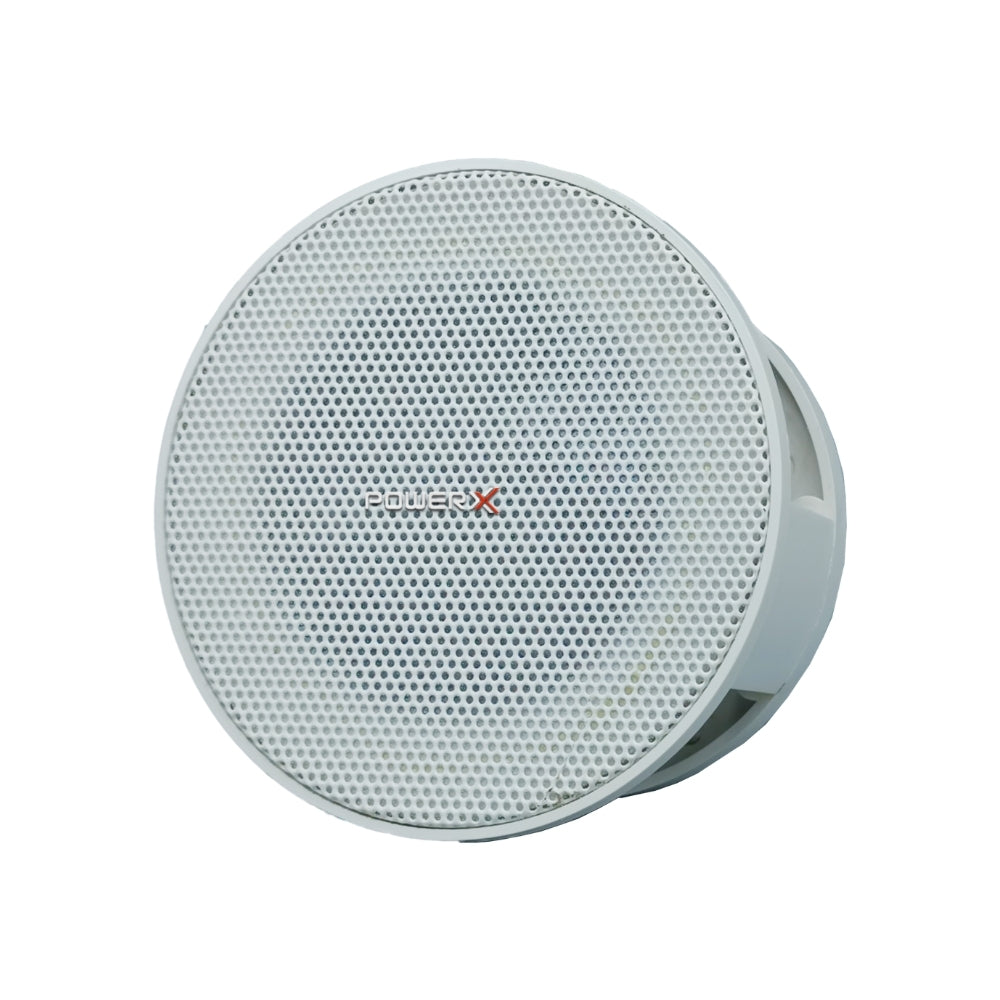

Meet the CS 326, an ultra-compact flush-mount ceiling speaker that redefines premier acoustic performance for highly space-constrained environments. Designed explicitly for extremely tight ceiling plenums, under-balcony fills, and minimalist corporate designs, this speaker is a masterclass in discreet audio distribution. It empowers architects and AV integrators to deliver high-quality, intelligible sound in locations where traditional commercial fixtures physically cannot fit.

Acoustic efficiency is meticulously dialed in to provide clear, present audio without demanding excessive power. It operates on a standard Max/Rated Power of 6w/100v with a focused sensitivity of 85 dB (1m, 1w). This controlled output ensures that the overall loudness is perfectly suited for near-field applications, providing enough dynamic headroom to cleanly reproduce voice paging and ambient music without physically overloading the miniature driver.

The internal architecture is an engineering marvel, squeezed into incredibly tight dimensions of just 105 x 80 mm. Despite the small volume, the driver is expertly tuned to project a surprisingly wide and completely even coverage angle. This guarantees phase-accurate, uniform sound dispersion, allowing these units to perfectly blanket intimate listening zones without causing harsh acoustic overlap or dead spots in the coverage map.

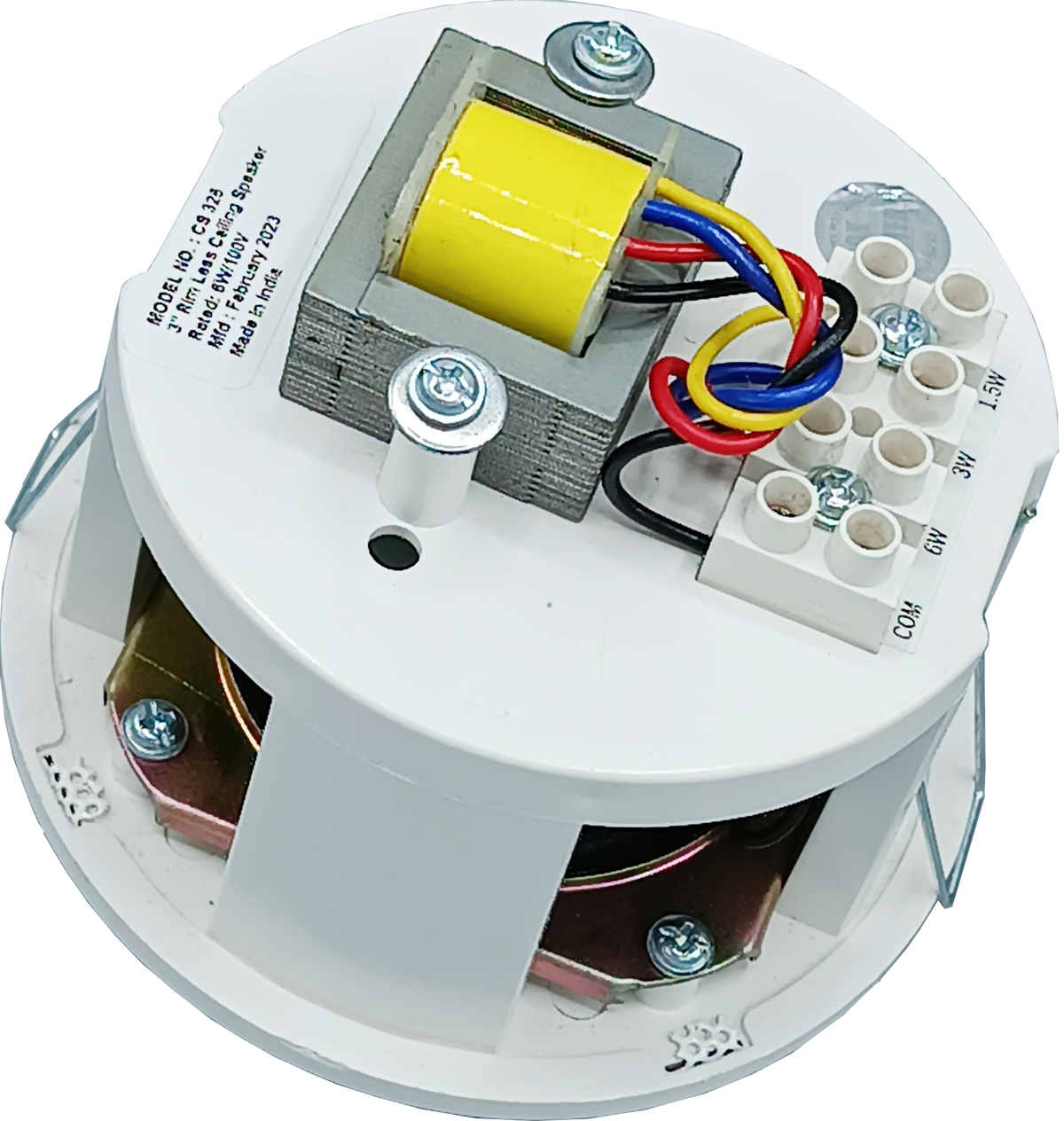

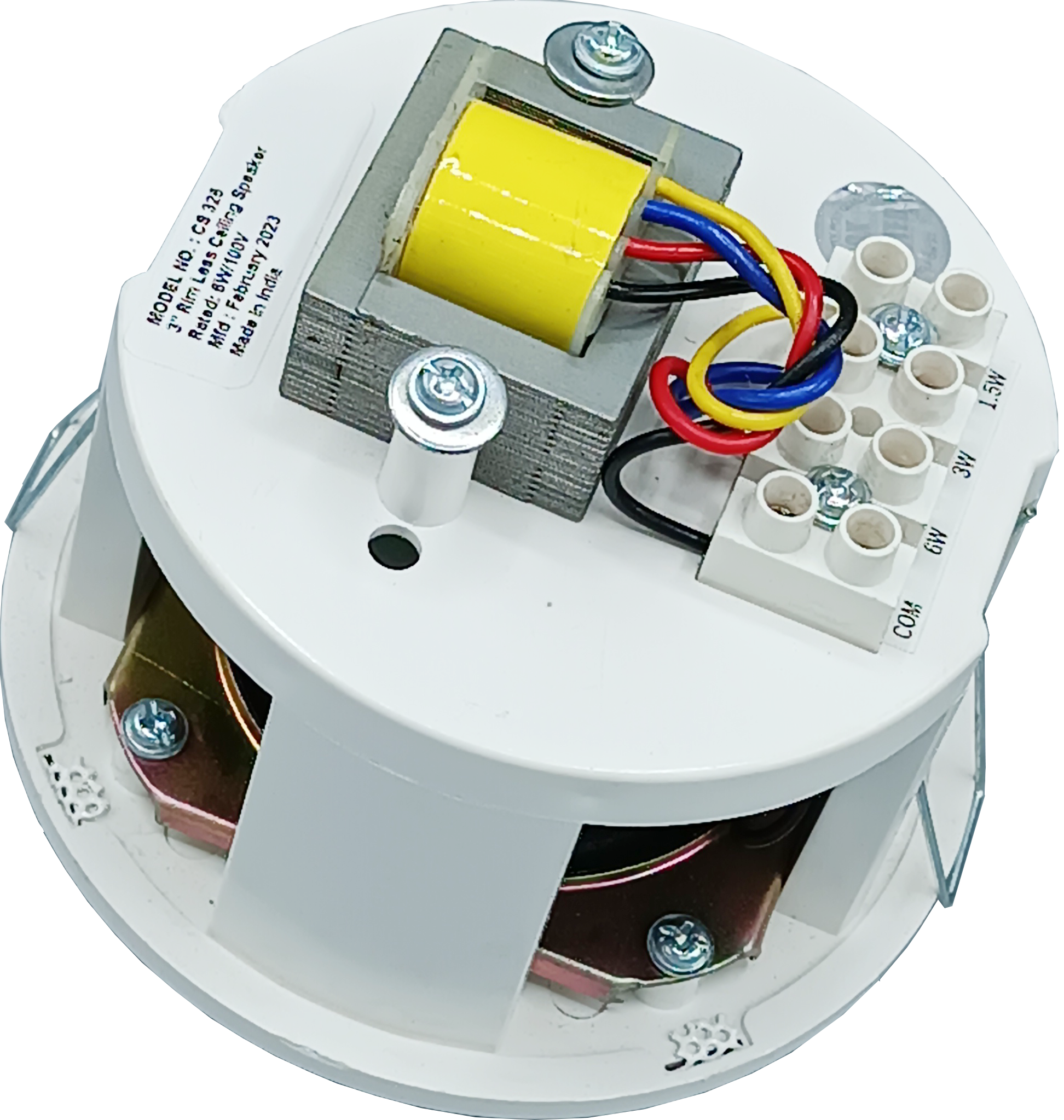

Sonically, it is strictly tailored for pristine vocal clarity and light ambient music, featuring a highly focused frequency response from 70 to 15KHz. It is built entirely for integration into large-scale distributed lines, featuring a 100V transformer with versatile taps at 6W, 3W, and 1.5W, alongside an 8 Ohms impedance setting. This brilliant network flexibility ensures that hundreds of these micro-speakers can be efficiently driven off a single commercial amplifier.

The physical chassis is built for extreme reliability and completely invisible aesthetic integration. Constructed from a highly durable ABS / Metal Frame, it requires an incredibly small Ø 82 mm hole for mounting. Weighing a mere 0.47kg, it practically installs itself, floating effortlessly in the lightest of drop-ceiling materials. This incredibly rugged build and rapid mounting system guarantee absolutely rock-solid performance in the field.

The CS 326 is a compact and reliable ceiling speaker designed for high-quality sound distribution in commercial and institutional spaces. Its sleek design and efficient performance make it ideal for voice and music reproduction in offices, retail environments, and public buildings.
