D LINE 3000

D LINE 3000

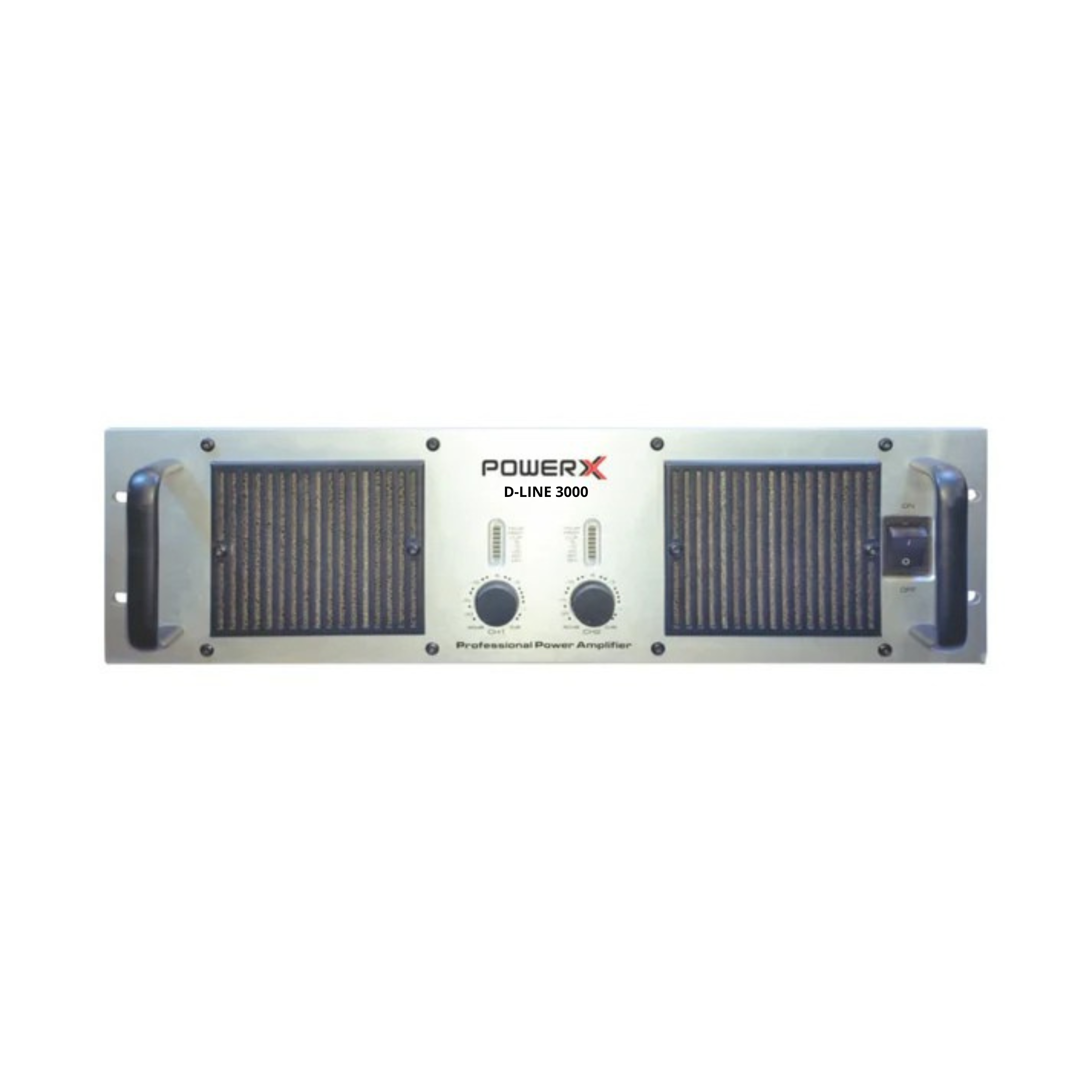

Introducing the D LINE 3000, a fiercely articulate two-channel amplifier from the formidable D LINE series, crafted to be the rock-solid backbone for professional live sound environments and dedicated fixed installations. Powered by innovative Class 1™ output circuitry, this amplifier maximizes electrical efficiency while maintaining the pristine sonic characteristics essential for high-fidelity sound reinforcement. Designed for discerning sound engineers and system integrators, it stands as the ideal high-energy workhorse for driving full-range front-of-house mains, critical stage wedges, and auxiliary delay stacks with uncompromising reliability.

The D LINE 3000 delivers highly versatile, raw power across a variety of demanding speaker loads, generating a punchy 650 watts per channel at 8 ohms, 1000 watts at 4 ohms, and a resilient 1300 watts per channel into 2-ohm stereo configurations. When deployed in bridged mono mode, it transforms into a potent low-frequency titan, outputting 2000 watts at 8 ohms and a fierce 2600 watts at 4 ohms. The amplifier’s rapid slew rate, measuring above 10V/us, ensures that high-velocity transients are captured flawlessly, while a damping factor greater than 300 exerts total electro-mechanical control over your woofer cones. The result is generous acoustic headroom and aggressively tight low-frequency performance that never loses its focused impact.

Signal flow and system routing are effortlessly managed by a highly adaptable rear-panel control suite. Technicians can seamlessly match the amplifier to any front-end architecture using the variable input sensitivity switch, offering standard 0.775V, 1 V, and 32 dB operating parameters. The precision input stage ensures maximum signal integrity with a 20k ohm balanced and 10k ohm unbalanced input impedance. Furthermore, a rigorous crosstalk rejection specification of greater than 65dB guarantees exceptional channel separation, allowing operators to run vastly different monitor mixes or processing zones through each channel without fear of cross-contamination.

Audio purity remains at the absolute core of the D LINE 3000’s design, highlighted by a meticulously flat frequency response spanning 20Hz to 20kHz (+0/-1.5 dB). Dynamic range is heavily preserved by a signal-to-noise ratio exceeding 90dB, instantly plunging the system into total silence when no audio signal is present. Total Harmonic Distortion plus Noise (THD+N) remains tightly suppressed below 0.5%, ensuring the mix stays exceptionally clean and musical even as you approach clipping limits. Paired with a precisely calibrated voltage gain of 39.3 dB, the amplifier guarantees your source audio is magnified with breathtaking transparency and zero unwanted coloration.

Housed in a rugged 20 kg enclosure, the D LINE 3000 is engineered to shrug off the daily abuse of live event production and grueling permanent installs. Its robust internals are shielded by a comprehensive array of automated protections, including short circuit, DC fault, overload, overheating, soft start, and clip limiting defenses, all actively sustained by a high-velocity front-to-rear cooling system. Delivering brilliant acoustic detail backed by ironclad dependability, the D LINE 3000 is a relentless performance tool that ensures your sound system operates flawlessly night after night.
